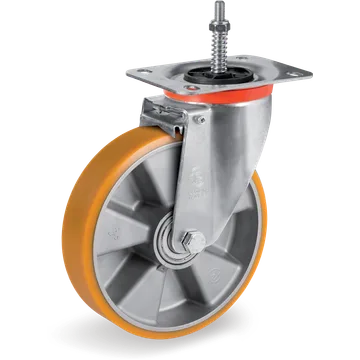

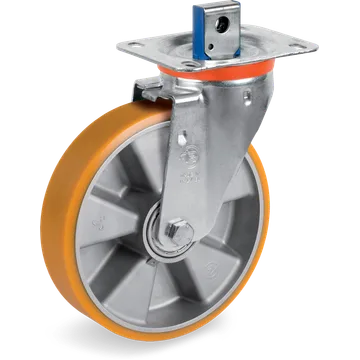

Tellure Rôta · Injected and TR polyurethane

Series 65AL

TR polyurethane wheels, aluminium centre

Articles: 90
Diameters: Ø80–200 mm
Maximum load: 850 daN
Tread: TR polyurethane

View the 90 articles in the finder Request a quote

Injected and TR polyurethane

Series 65AL

Articles in this series

Every code in the series, grouped by wheel and bracket type. Select a code to see its datasheet, drawing and quote.

Ruedas en poliuretano "TR", núcleo en aluminio13 articles · Ø80–200 mm

Code	Size	Load (daN)	Bearing	Brake
652101	Ø80×25 mm	220	Ball bearings	No
654101	Ø80×25 mm	220	Bearing housing	No
652102	Ø100×30 mm	250	Ball bearings	No
654102	Ø100×30 mm	250	Bearing housing	No
652103	Ø125×35 mm	400	Ball bearings	No
654103	Ø125×35 mm	400	Bearing housing	No
651104	Ø150×40 mm	600	Ball bearings	No
653104	Ø150×40 mm	600	Bearing housing	No
652114	Ø160×50 mm	800	Ball bearings	No
654114	Ø160×50 mm	800	Bearing housing	No
651106	Ø200×50 mm	850	Ball bearings	No
651206	Ø200×50 mm	850	Ball bearings	No
653106	Ø200×50 mm	850	Bearing housing	No

Ruedas en poliuretano "TR", núcleo en aluminio, soporte giratorio pletina NL8 articles · Ø80–200 mm

Code	Size	Load (daN)	Bearing	Brake
659301	Ø80×25 mm	200	Ball bearings	No
659302	Ø100×30 mm	200	Ball bearings	No
659303	Ø125×35 mm	220	Ball bearings	No
659313	Ø125×35 mm	220	Ball bearings	No
659304	Ø150×40 mm	300	Ball bearings	No
659312	Ø150×40 mm	220	Ball bearings	No
659514	Ø160×50 mm	300	Ball bearings	No
659306	Ø200×50 mm	300	Ball bearings	No

Ruedas en poliuretano "TR", núcleo en aluminio, soporte giratorio taladro pasador NL6 articles · Ø80–200 mm

Code	Size	Load (daN)	Bearing	Brake
656401	Ø80×25 mm	200	Ball bearings	No
656402	Ø100×30 mm	200	Ball bearings	No
656403	Ø125×35 mm	220	Ball bearings	No
656404	Ø150×40 mm	300	Ball bearings	No
656414	Ø160×50 mm	300	Ball bearings	No
656406	Ø200×50 mm	300	Ball bearings	No

Ruedas en poliuretano "TR", núcleo en aluminio, soporte giratorio pletina NL freno delantero6 articles · Ø80–200 mm

Code	Size	Load (daN)	Bearing	Brake
656501	Ø80×25 mm	200	Ball bearings	Yes
656502	Ø100×30 mm	200	Ball bearings	Yes
656503	Ø125×35 mm	220	Ball bearings	Yes
656504	Ø150×40 mm	300	Ball bearings	Yes
656514	Ø160×50 mm	300	Ball bearings	Yes
656506	Ø200×50 mm	300	Ball bearings	Yes

Ruedas en poliuretano "TR", núcleo en aluminio, soporte giratorio taladro pasador NL freno delantero6 articles · Ø80–200 mm

Code	Size	Load (daN)	Bearing	Brake
656801	Ø80×25 mm	200	Ball bearings	Yes
656802	Ø100×30 mm	200	Ball bearings	Yes
656803	Ø125×35 mm	220	Ball bearings	Yes
656804	Ø150×40 mm	300	Ball bearings	Yes
656814	Ø160×50 mm	300	Ball bearings	Yes
656806	Ø200×50 mm	300	Ball bearings	Yes

Ruedas en poliuretano "TR", núcleo en aluminio, soporte giratorio pletina P5 articles · Ø100–200 mm

Code	Size	Load (daN)	Bearing	Brake
657602	Ø100×30 mm	250	Ball bearings	No
657603	Ø125×35 mm	350	Ball bearings	No
657604	Ø150×40 mm	600	Ball bearings	No
657514	Ø160×50 mm	750	Ball bearings	No
657606	Ø200×50 mm	750	Ball bearings	No

Ruedas en poliuretano "TR", núcleo en aluminio, soporte giratorio pletina EP5 articles · Ø100–200 mm

Code	Size	Load (daN)	Bearing	Brake
657802	Ø100×30 mm	250	Ball bearings	No
657803	Ø125×35 mm	350	Ball bearings	No
657704	Ø150×40 mm	600	Ball bearings	No
657714	Ø160×50 mm	800	Ball bearings	No
657706	Ø200×50 mm	850	Ball bearings	No

Ruedas en poliuretano TR, núcleo en aluminio, soporte giratorio pletina P con freno registrable3 articles · Ø150–200 mm

Code	Size	Load (daN)	Bearing	Brake
656604	Ø150×40 mm	600	Ball bearings	Yes
656614	Ø160×50 mm	750	Ball bearings	Yes
656606	Ø200×50 mm	750	Ball bearings	Yes

Ruedas en poliuretano TR, núcleo en aluminio, soporte giratorio pletina PT con freno registrable3 articles · Ø150–200 mm

Code	Size	Load (daN)	Bearing	Brake
656674	Ø150×40 mm	600	Ball bearings	Yes
656684	Ø160×50 mm	800	Ball bearings	Yes
656676	Ø200×50 mm	850	Ball bearings	Yes

Ruedas en poliuretano TR, núcleo en aluminio, soporte giratorio pletina EP con freno registrable3 articles · Ø150–200 mm

Code	Size	Load (daN)	Bearing	Brake
656904	Ø150×40 mm	600	Ball bearings	Yes
657014	Ø160×50 mm	800	Ball bearings	Yes
656906	Ø200×50 mm	850	Ball bearings	Yes

Ruedas en poliuretano "TR", núcleo en aluminio, soporte giratorio pletina PT3 articles · Ø150–200 mm

Code	Size	Load (daN)	Bearing	Brake
657544	Ø150×40 mm	600	Ball bearings	No
657554	Ø160×50 mm	800	Ball bearings	No
657546	Ø200×50 mm	850	Ball bearings	No

Ruedas en poliuretano "TR", núcleo en aluminio, soporte giratorio pletina M3 articles · Ø150–200 mm

Code	Size	Load (daN)	Bearing	Brake
659604	Ø150×40 mm	500	Ball bearings	No
659614	Ø160×50 mm	500	Ball bearings	No
659606	Ø200×50 mm	500	Ball bearings	No

Ruedas en poliuretano "TR", núcleo en aluminio, soporte giratorio pletina M freno delantero3 articles · Ø150–200 mm

Code	Size	Load (daN)	Bearing	Brake
659704	Ø150×40 mm	500	Ball bearings	Yes
659714	Ø160×50 mm	500	Ball bearings	Yes
659706	Ø200×50 mm	500	Ball bearings	Yes

Ruedas de poliuretano TR, núcleo de aluminio, soporte giratorio pletina NL con centralizado registrable de doble posición2 articles · Ø160–200 mm

Code	Size	Load (daN)	Bearing	Brake
654710	Ø160×50 mm	300	Ball bearings	Yes
654716	Ø200×50 mm	300	Ball bearings	Yes

Ruedas de poliuretano TR, núcleo de aluminio, soporte giratorio pletina NL freno centralizado activo2 articles · Ø160–200 mm

Code	Size	Load (daN)	Bearing	Brake
654804	Ø160×50 mm	300	Ball bearings	Yes
654806	Ø200×50 mm	300	Ball bearings	Yes

Ruedas en poliuretano "TR", núcleo en aluminio, soporte giratorio pletina P freno delantero2 articles · Ø100–125 mm

Code	Size	Load (daN)	Bearing	Brake
656602	Ø100×30 mm	250	Ball bearings	Yes
656603	Ø125×35 mm	350	Ball bearings	Yes

Ruedas en poliuretano "TR", núcleo en aluminio, soporte fijo NL-M7 articles · Ø80–200 mm

Code	Size	Load (daN)	Bearing	Brake
658201	Ø80×25 mm	200	Ball bearings	No
658202	Ø100×30 mm	200	Ball bearings	No
658203	Ø125×35 mm	220	Ball bearings	No
658104	Ø150×40 mm	500	Ball bearings	No
658112	Ø150×40 mm	220	Ball bearings	No
658114	Ø160×50 mm	500	Ball bearings	No
658106	Ø200×50 mm	500	Ball bearings	No

Ruedas en poliuretano "TR", núcleo en aluminio, soporte fijo P5 articles · Ø100–200 mm

Code	Size	Load (daN)	Bearing	Brake
658602	Ø100×30 mm	250	Ball bearings	No
658603	Ø125×35 mm	350	Ball bearings	No
658604	Ø150×40 mm	600	Ball bearings	No
658614	Ø160×50 mm	800	Ball bearings	No
658606	Ø200×50 mm	850	Ball bearings	No

Ruedas en poliuretano "TR", núcleo en aluminio, soporte fijo EP5 articles · Ø100–200 mm

Code	Size	Load (daN)	Bearing	Brake
658802	Ø100×30 mm	250	Ball bearings	No
658803	Ø125×35 mm	350	Ball bearings	No
658704	Ø150×40 mm	600	Ball bearings	No
658714	Ø160×50 mm	800	Ball bearings	No
658706	Ø200×50 mm	850	Ball bearings	No

View the 90 articles in the finder
