221106Series 22

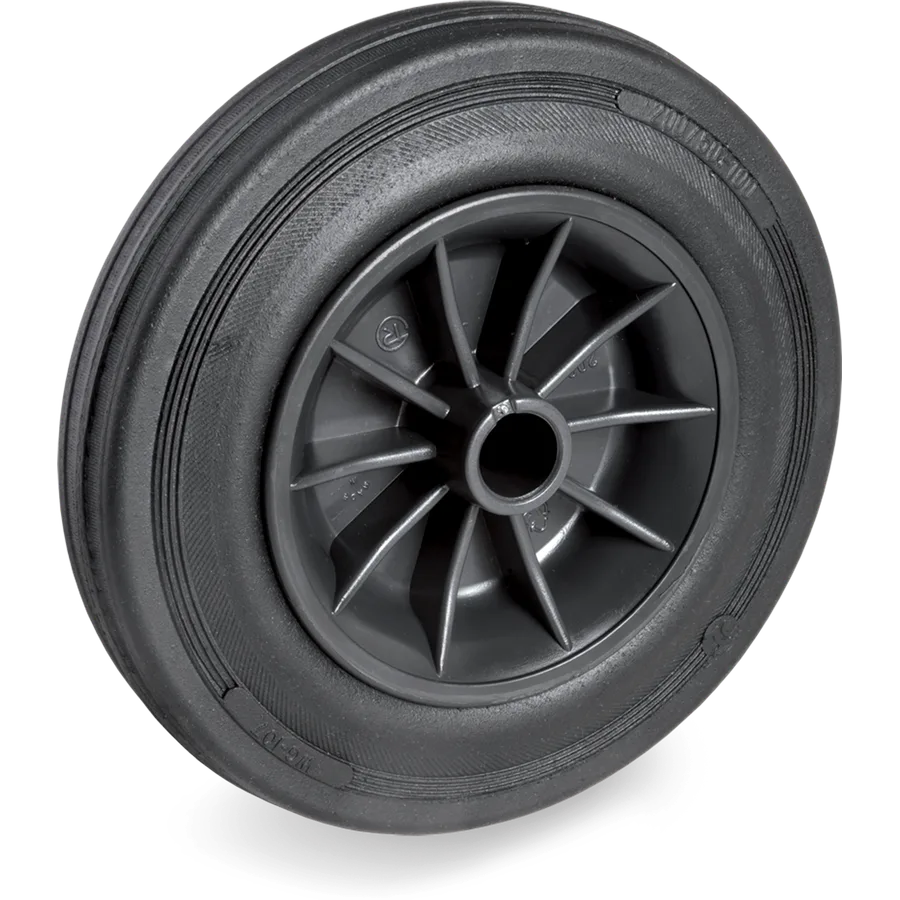

521106Representative image of the familyRubber wheel Ø200×50 mm
Ruedas en goma standard, núcleo en polipropileno
Tellure description: 52 200X50 CB F20 LM59
- Diameter (D)
- Ø 200mm
- Width (F)
- 50mm
- Load at 4 km/h
- 225daN
- Tread
- Rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 521106
- Series
- Tellure Rôta 52
- Tread
- Rubber
- Diameter (D)
- 200 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 225 daN
- Static load
- 400 daN
- Bearing
- Plain bore
- Bore diameter (DD)
- 20 mm
- Hub length (L)
- 59 mm
Other sizes in this family
Ruedas en goma standard, núcleo en polipropileno
22 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 522101 | Ø80×25 mm | 65 daN | C/B | — | 52 80X25 CB F12 LM39 |
| 524101 | Ø80×25 mm | 65 daN | C/R | — | 52 80X25 CR F12 LM39 |
| 521132 | Ø100×30 mm | 80 daN | C/B | — | 52 100X30 CB F12 LM39 |
| 522102 | Ø100×30 mm | 80 daN | C/B | — | 52 100X30 CB F12 LM44 |
| 524102 | Ø100×30 mm | 80 daN | C/R | — | 52 100X30 CR LM44 |
| 521103 | Ø125×37.5 mm | 110 daN | C/B | — | 52 125X37,5 CB F15 LM44 |
| 521133 | Ø125×37.5 mm | 110 daN | C/B | — | 52 125X37,5 CB F12 LM39 |
| 523103 | Ø125×37.5 mm | 110 daN | C/R | — | 52 125X37,5 CR F15 LM44 |
| 521104 | Ø140×37.5 mm | 120 daN | C/B | — | 52 140X37,5 CB F15 LM44 |
| 523104 | Ø140×37.5 mm | 120 daN | C/R | — | 52 140X37,5 CR F15 LM44 |
| 521111 | Ø150×40 mm | 130 daN | C/B | — | 52 150X40 CB F15 LM44 |
| 523111 | Ø150×40 mm | 130 daN | C/R | — | 52 150X40 CR F15 LM44 |
| 521110 | Ø160×40 mm | 150 daN | C/B | — | 52 160X40 CB F20 LM59 |
| 523110 | Ø160×40 mm | 150 daN | C/R | — | 52 160X40 CR F20 LM59 |
| 521105 | Ø180×45 mm | 180 daN | C/B | — | 52 180X45 CB F20 LM59 |
| 523105 | Ø180×45 mm | 180 daN | C/R | — | 52 180X45 CR F20 LM59 |
| 521106 | Ø200×50 mm | 225 daN | C/B | — | This article |
| 521206 | Ø200×50 mm | 225 daN | C/B | — | 52 200X50 CB F25 LM59 |
| 523106 | Ø200×50 mm | 225 daN | C/R | — | 52 200X50 CR F20 LM59 |
| 523206 | Ø200×50 mm | 225 daN | C/R | — | 52 200X50 CR F25 LM59 |
| 521108 | Ø250×60 mm | 300 daN | C/B | — | 52 250X60 CB F25 LM75 |
| 523108 | Ø250×60 mm | 300 daN | C/R | — | 52 250X60 CR F25 LM59 |
