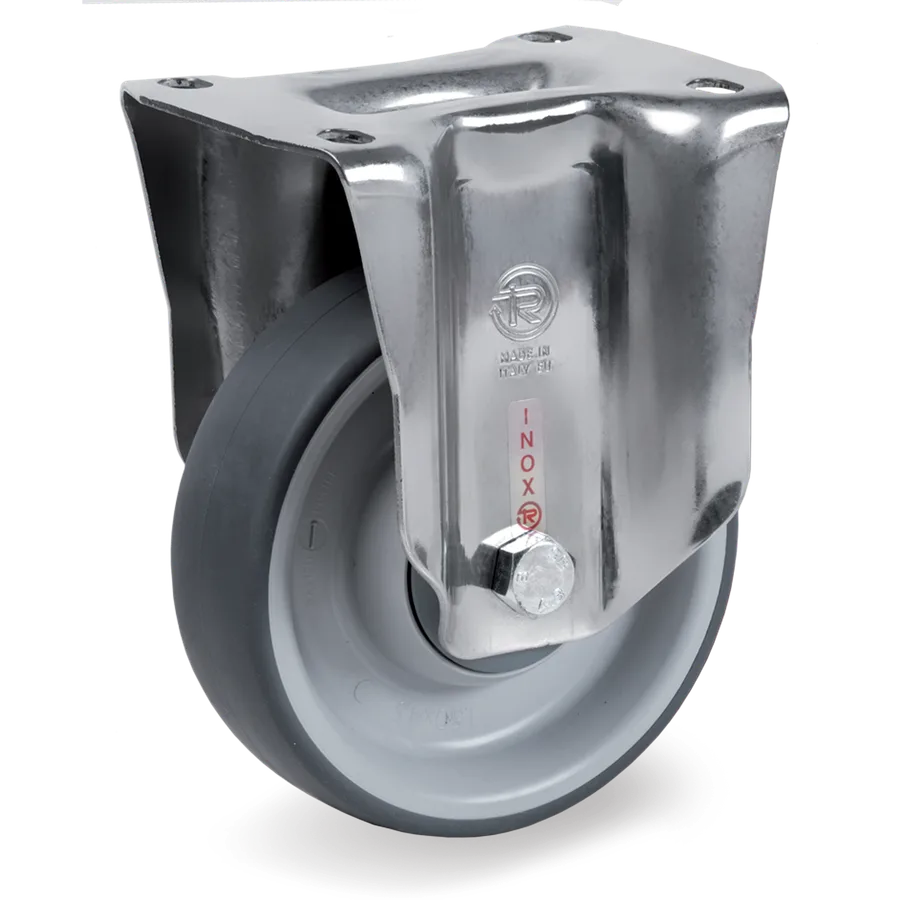

715011Representative image of the familyThermoplastic rubber fixed castor Ø150×45 mm
Ruedas de Goma termoplástica, nucleo de polipropileno, soporte fijo NLX
Tellure description: 71 150X45 CCX SF/NLX R2.0
- Diameter (D)
- Ø 150mm
- Width (F)
- 45mm
- Load at 4 km/h
- 180daN
- Tread
- Thermoplastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 715011
- Series
- Tellure Rôta 71
- Tread
- Thermoplastic rubber
- Diameter (D)
- 150 mm
- Width (F)
- 45 mm
- Load at 4 km/h
- 180 daN
- Bearing
- Ball bearings 2RS stainless
Bracket
- Bracket type
- Fixed
- Fitting
- Top plate
- Bracket material
- Stainless steel
- Brake
- No
Other sizes in this family
Ruedas de Goma termoplástica, nucleo de polipropileno, soporte fijo NLX
15 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 715301 | Ø80×30 mm | 70 daN | C/B | No | 71 80X30 CB SF/NLX R1.0 |
| 715601 | Ø80×30 mm | 70 daN | C/RX | No | 71 80X30 CRX SF/NLX R1.0 |
| 715302 | Ø100×30 mm | 100 daN | C/B | No | 71 100X30 CB SF/NLX R1.0 |
| 715602 | Ø100×30 mm | 100 daN | C/RX | No | 71 100X30 CRX SF/NLX R1.0 |
| 715303 | Ø125×35 mm | 120 daN | C/B | No | 71 125X35 CB SF/NLX R1.0 |
| 715603 | Ø125×35 mm | 120 daN | C/RX | No | 71 125X35 CRX SF/NLX R1.0 |
| 715304 | Ø150×35 mm | 140 daN | C/B | No | 71 150X35 CB SF/NLX R1.0 |
| 715604 | Ø150×35 mm | 140 daN | C/RX | No | 71 150X35 CRX SF/NLX R1.0 |
| 715011 | Ø150×45 mm | 180 daN | C/CX 2RS | No | This article |
| 715311 | Ø150×45 mm | 180 daN | C/B | No | 71 150X45 CB SF/NLX R2.0 |
| 715611 | Ø150×45 mm | 180 daN | C/RX | No | 71 150X45 CRX SF/NLX R2.0 |
| 715010 | Ø160×50 mm | 200 daN | C/CX 2RS | No | 71 160X50 CCX SF/NLX R2.0 |
| 715036 | Ø200×50 mm | 225 daN | C/CX 2RS | No | 71 200X50 CCX SF/NLX R2.0 |
| 715306 | Ø200×50 mm | 225 daN | C/B | No | 71 200X50 CB SF/NLX R2.0 |
| 715606 | Ø200×50 mm | 225 daN | C/RX | No | 71 200X50 CRX SF/NLX R2.0 |
