687215Series 68Polyamide 6 swivel castor Ø175×45 mm with brake
Ruedas monobloque en poliamida 6, soporte giratorio pletina PX con freno registrable
Load capacity: 630 daN

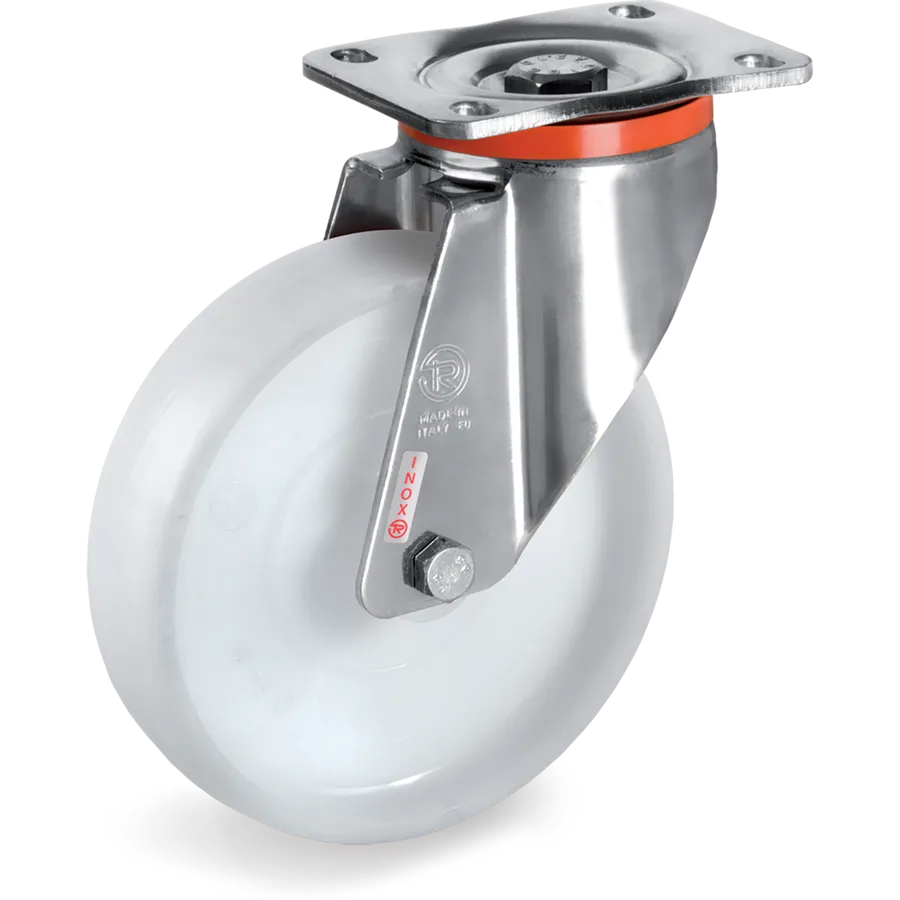

687315Representative image of the familyPolyamide 6 swivel castor Ø175×45 mm
Ruedas monobloque en poliamida 6, soporte giratorio pletina PX
Tellure description: 68 175X45 CRX SRP/PX R2.0
- Diameter (D)
- Ø 175mm
- Width (F)
- 45mm
- Load at 4 km/h
- 630daN
- Tread
- Polyamide 6
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 687315
- Series
- Tellure Rôta 68
- Tread
- Polyamide 6
- Diameter (D)
- 175 mm
- Width (F)
- 45 mm
- Load at 4 km/h
- 630 daN
- Bearing
- Roller bearing stainless
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Stainless steel
- Brake
- No
Other sizes in this family
Ruedas monobloque en poliamida 6, soporte giratorio pletina PX
6 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 687004 | Ø150×45 mm | 500 daN | C/B | No | 68 150X45 CB SRP/PX R2.0 |
| 687314 | Ø150×45 mm | 500 daN | C/RX | No | 68 150X45 CRX SRP/PX R2.0 |
| 687005 | Ø175×45 mm | 630 daN | C/B | No | 68 175X45 CB SRP/PX R2.0 |
| 687315 | Ø175×45 mm | 630 daN | C/RX | No | This article |
| 687006 | Ø200×50 mm | 730 daN | C/B | No | 68 200X50 CB SRP/PX R2.0 |
| 687316 | Ø200×50 mm | 730 daN | C/RX | No | 68 200X50 CRX SRP/PX R2.0 |
