607004Series 60Thermoplastic polyurethane swivel castor Ø150×45 mm
Ruedas en poliuretano inyectado, núcleo en poliamida 6, soporte giratorio pletina PX
Load capacity: 350 daN

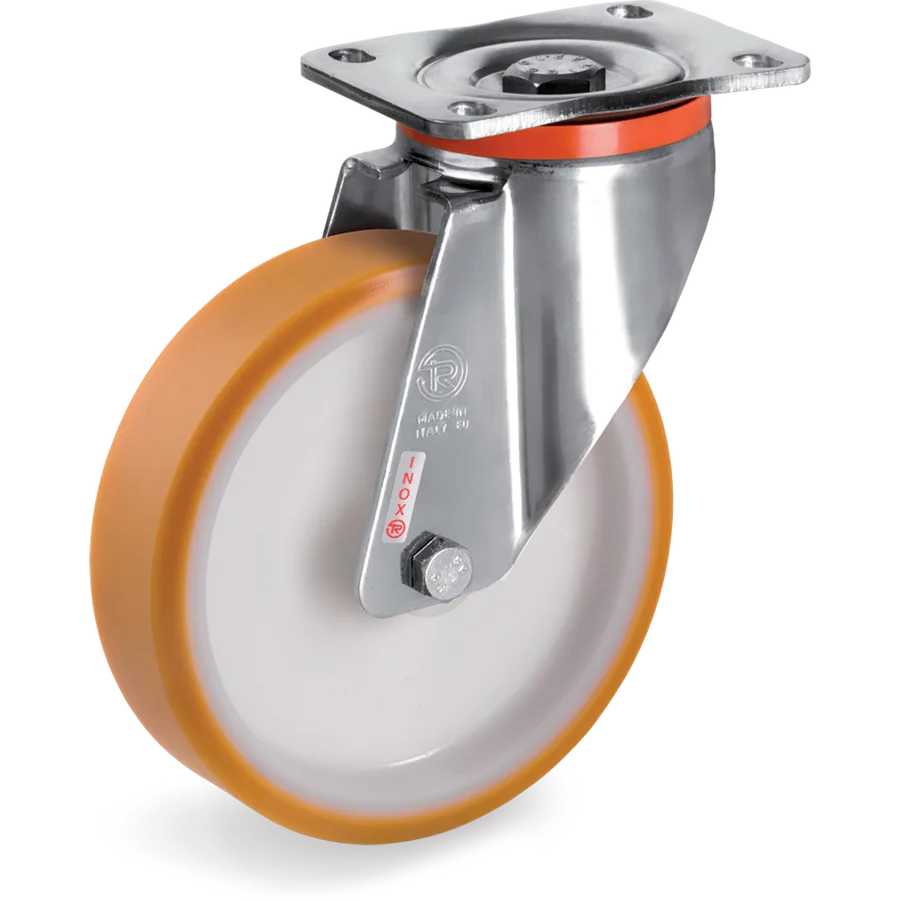

667004Representative image of the familyTR polyurethane swivel castor Ø150×40 mm
Ruedas en poliuretano "TR", núcleo en poliamida, soporte giratorio pletina PX
Tellure description: 66 150X40 CB SRP/PX R2.0
- Diameter (D)
- Ø 150mm
- Width (F)
- 40mm
- Load at 4 km/h
- 400daN
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 667004
- Series
- Tellure Rôta 66
- Tread
- TR polyurethane
- Diameter (D)
- 150 mm
- Width (F)
- 40 mm
- Load at 4 km/h
- 400 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Stainless steel
- Brake
- No
Other sizes in this family
Ruedas en poliuretano "TR", núcleo en poliamida, soporte giratorio pletina PX
6 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 667004 | Ø150×40 mm | 400 daN | C/B | No | This article |
| 667314 | Ø150×40 mm | 400 daN | C/RX | No | 66 150X40 CRX SRP/PX R2.0 |
| 667005 | Ø175×40 mm | 470 daN | C/B | No | 66 175X40 CB SRP/PX R2.0 |
| 667315 | Ø175×40 mm | 470 daN | C/RX | No | 66 175X40 CRX SRP/PX R2.0 |
| 667006 | Ø200×50 mm | 600 daN | C/B | No | 66 200X50 CB SRP/PX R2.0 |
| 667316 | Ø200×50 mm | 600 daN | C/RX | No | 66 200X50 CRX SRP/PX R2.0 |
Similar alternatives
- 607004Series 60
609411Series 60Thermoplastic polyurethane swivel castor Ø150×45 mm
Ruedas en poliuretano termoplastico, núcleo en poliamida 6, soporte giratorio pletina PX
Load capacity: 350 daN

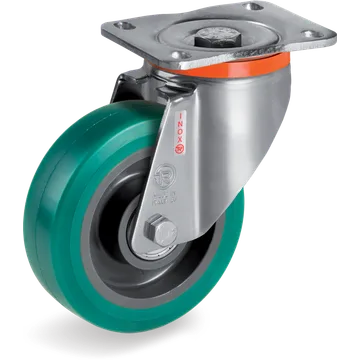

625424Series 62NYERTR-Roll polyurethane swivel castor Ø160×50 mm
Ruedas de poliuretano "TR Roll" con perfil redondo con núcleo de poliamida 6, soportes giratorios tipo PX
Load capacity: 400 daN
625434Series 62NYTR-Roll polyurethane swivel castor Ø160×50 mm
Ruedas de poliuretano "TR Roll" con núcleo de poliamida 6, soportes giratorios tipo PX
Load capacity: 400 daN
