609910Series 60Thermoplastic polyurethane swivel castor Ø160×50 mm with brake
Ruedas en poliuretano termoplastico, núcleo en poliamida 6, soporte giratorio pletina PX freno trasero
Load capacity: 400 daN

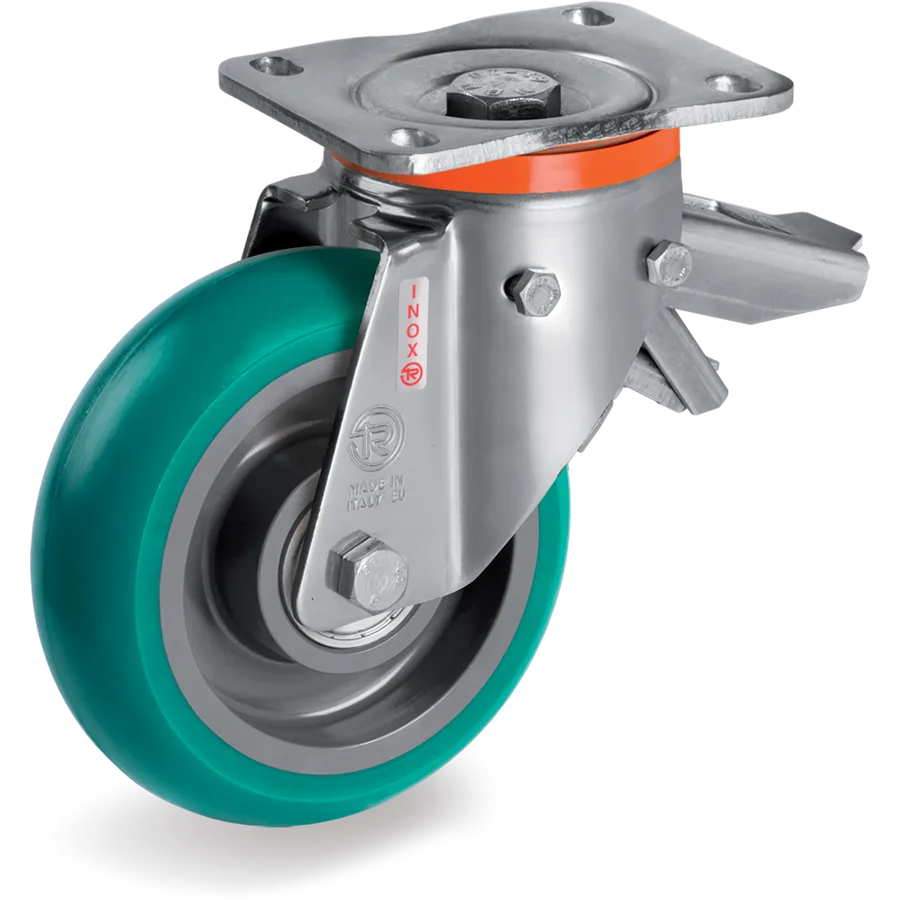

625624Representative image of the familyTR-Roll polyurethane swivel castor Ø160×50 mm with brake
Ruedas de poliuretano "TR Roll" con perfil redondo con núcleo de poliamida 6, soportes giratorios PX con freio
Tellure description: 62NYER 160X50 CCX SRP/PX+FP R2.0
- Diameter (D)
- Ø 160mm
- Width (F)
- 50mm
- Load at 4 km/h
- 400daN
- Tread
- TR-Roll polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 625624
- Series
- Tellure Rôta 62NYER
- Tread
- TR-Roll polyurethane
- Diameter (D)
- 160 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 400 daN
- Load at 6 km/h
- 360 daN
- Bearing
- Ball bearings 2RS stainless
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Stainless steel
- Brake
- Yes
- Brake type
- Rear brake
Other sizes in this family
Ruedas de poliuretano "TR Roll" con perfil redondo con núcleo de poliamida 6, soportes giratorios PX con freio
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 625624 | Ø160×50 mm | 400 daN | C/CX 2RS | Yes | This article |
| 625626 | Ø200×50 mm | 500 daN | C/CX 2RS | Yes | 62NYER 200X50 CCX SRP/PX+FP R2.0 |
