753106Series 75TR polyurethane roller Ø82×95 mm
Rodillos transpaleta en poliuretano "TR", núcleo en acero con laberintos
Load capacity: 750 daN

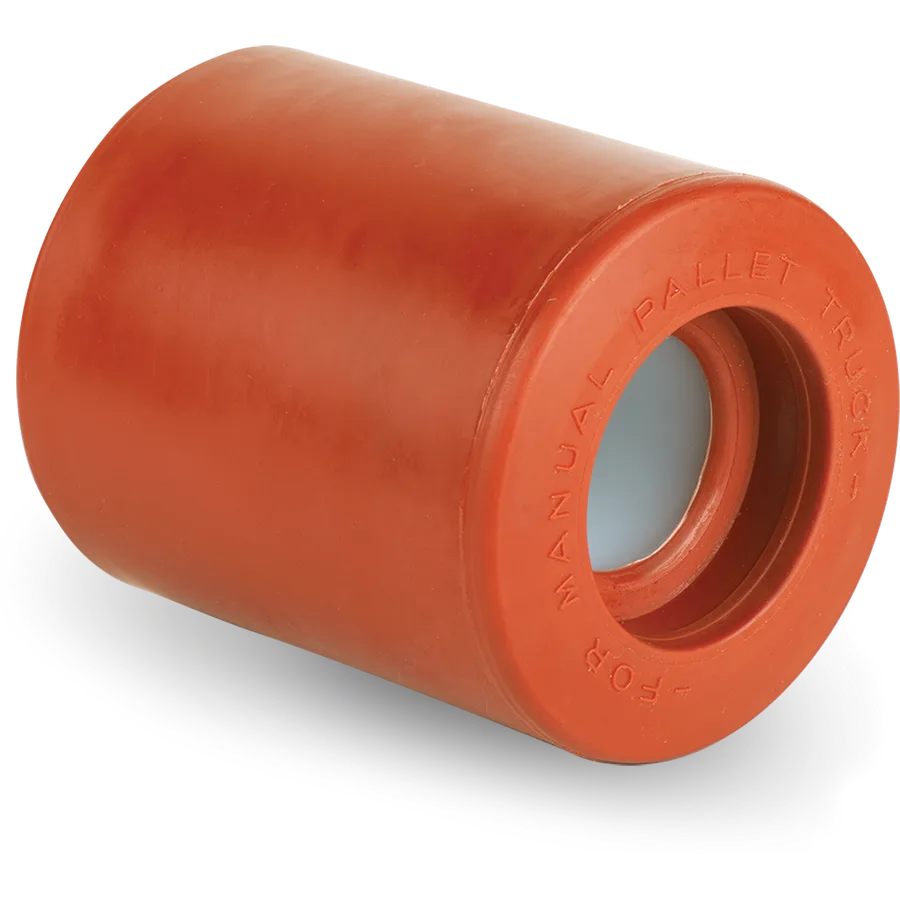

784105Representative image of the familyThermoplastic polyurethane roller Ø82×100 mm
Rodillos transpaleta en poliuretano inyectado TPU 60D, núcleo en poliamida 6
Tellure description: 78 82X100 SC 47X14
- Diameter (D)
- Ø 82mm
- Width (F)
- 100mm
- Load at 4 km/h
- 750daN
- Tread
- Thermoplastic polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 784105
- Series
- Tellure Rôta 78
- Tread
- Thermoplastic polyurethane
- Diameter (D)
- 82 mm
- Width (F)
- 100 mm
- Load at 4 km/h
- 750 daN
- Static load
- 750 daN
- Bearing
- Bearing housing
- Hub length (L)
- 100 mm
- Seat diameter (LL)
- 47 mm
- Bearing seat depth (M)
- 14 mm
Other sizes in this family
Rodillos transpaleta en poliuretano inyectado TPU 60D, núcleo en poliamida 6
10 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 782101 | Ø82×60 mm | 450 daN | C/C 2Z | — | 78 82X60 CC F20 LC60 |
| 784101 | Ø82×60 mm | 450 daN | S/C | — | 78 82X60 SC 47X14 |
| 782102 | Ø82×70 mm | 500 daN | C/C 2Z | — | 78 82X70 CC F20 LC70 |
| 784102 | Ø82×70 mm | 500 daN | S/C | — | 78 82X70 SC 47X14 |
| 782103 | Ø82×80 mm | 600 daN | C/C 2Z | — | 78 82X80 CC F20 LC80 |
| 784103 | Ø82×80 mm | 600 daN | S/C | — | 78 82X80 SC 47X14 |
| 782104 | Ø82×90 mm | 700 daN | C/C Z | — | 78 82X90 CC F20 LC90 |
| 784104 | Ø82×90 mm | 700 daN | S/C | — | 78 82X90 SC 47X14 |
| 782105 | Ø82×100 mm | 750 daN | C/C 2Z | — | 78 82X100 CC F20 LC100 |
| 784105 | Ø82×100 mm | 750 daN | S/C | — | This article |
