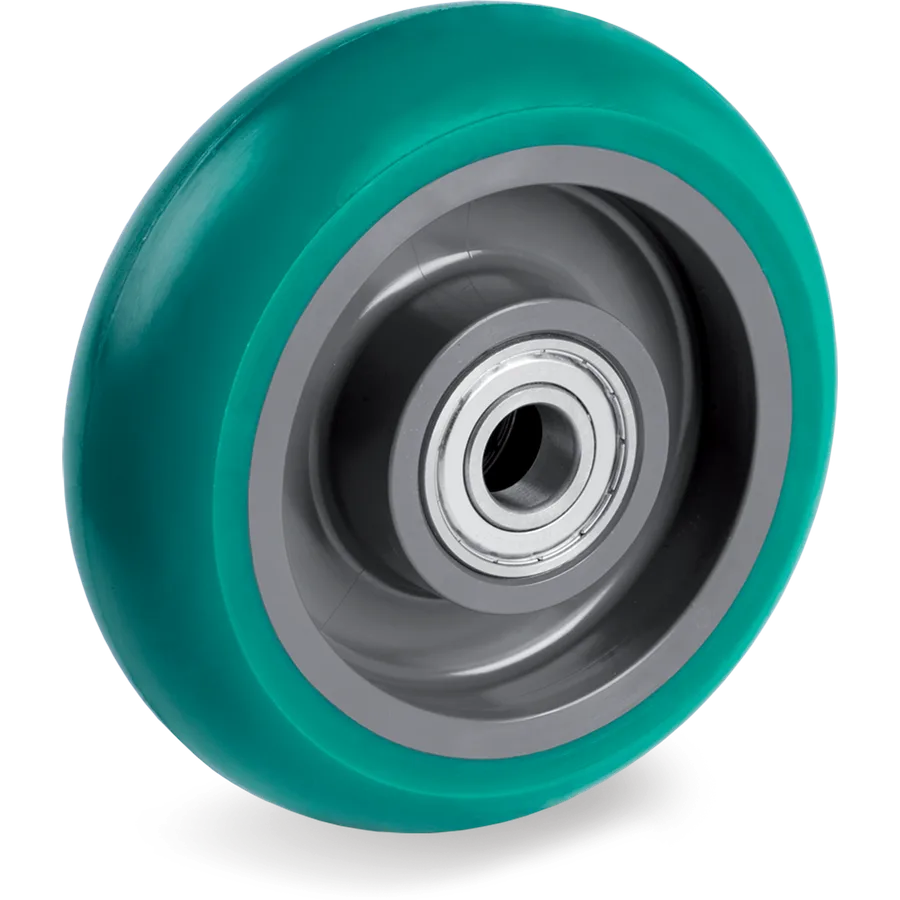

622503Representative image of the familyTR-Roll polyurethane wheel Ø125×40 mm
Ruedas de poliuretano "TR Roll" con perfil redondo con núcleo de poliamida 6
Tellure description: 62NYER 125X40 CCX F15 LM40
- Diameter (D)
- Ø 125mm
- Width (F)
- 40mm
- Load at 4 km/h
- 250daN
- Tread
- TR-Roll polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 622503
- Series
- Tellure Rôta 62NYER
- Tread
- TR-Roll polyurethane
- Diameter (D)
- 125 mm
- Width (F)
- 40 mm
- Load at 4 km/h
- 250 daN
- Load at 6 km/h
- 250 daN
- Static load
- 300 daN
- Bearing
- Ball bearings 2RS stainless
- Bore diameter (DD)
- 15 mm
- Hub length (L)
- 40 mm
- Seat diameter (LL)
- 32 mm
- Bearing seat depth (M)
- 9 mm
Other sizes in this family
Ruedas de poliuretano "TR Roll" con perfil redondo con núcleo de poliamida 6
9 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 622503 | Ø125×40 mm | 250 daN | C/CX 2RS | — | This article |
| 622603 | Ø125×40 mm | 250 daN | C/C 2Z | — | 62NYER 125X40 CC F15 LM40 |
| 624603 | Ø125×40 mm | 250 daN | S/C | — | 62NYER 125X40 SC 32X9 LM40 |
| 622504 | Ø160×50 mm | 400 daN | C/CX 2RS | — | 62NYER 160X50 CCX F20 LM55 |
| 622604 | Ø160×50 mm | 400 daN | C/C 2Z | — | 62NYER 160X50 CC F20 LM55 |
| 624704 | Ø160×50 mm | 400 daN | S/C | — | 62NYER 160X50 SC 47X14 LM55 |
| 622506 | Ø200×50 mm | 500 daN | C/CX 2RS | — | 62NYER 200X50 CCX F20 LM55 |
| 622606 | Ø200×50 mm | 500 daN | C/C 2Z | — | 62NYER 200X50 CC F20 LM55 |
| 624706 | Ø200×50 mm | 500 daN | S/C | — | 62NYER 200X50 SC 47X14 LM55 |
