221105Series 22

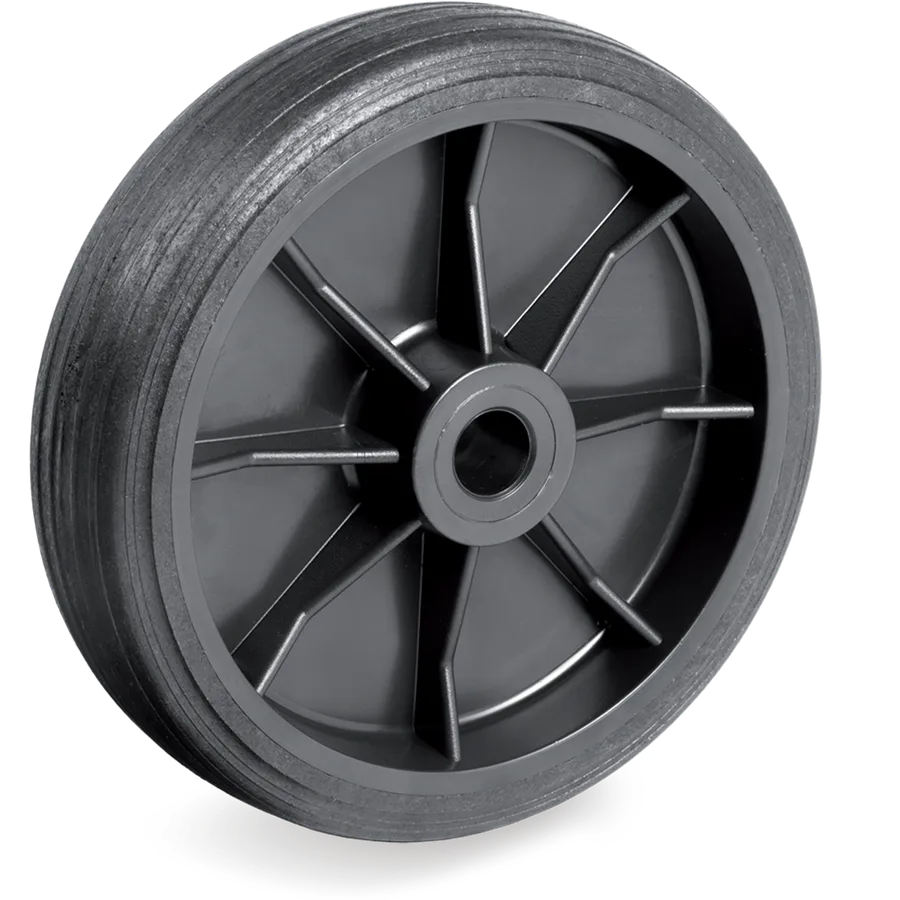

511105Representative image of the familyThermoplastic rubber wheel Ø175×45 mm
Ruedas en goma inyectada TPR, núcleo en polipropileno
Tellure description: 51 175X45 CB F20 LM59
- Diameter (D)
- Ø 175mm
- Width (F)
- 45mm
- Load capacity
- 100daN
- Tread
- Thermoplastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 511105
- Series
- Tellure Rôta 51
- Tread
- Thermoplastic rubber
- Diameter (D)
- 175 mm
- Width (F)
- 45 mm
- Static load
- 100 daN
- Bearing
- Plain bore
- Bore diameter (DD)
- 20 mm
- Hub length (L)
- 59 mm
Other sizes in this family
Ruedas en goma inyectada TPR, núcleo en polipropileno
8 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 511101 | Ø80×26 mm | 30 daN | C/B | — | 51 80X26 CB F10 LM34 |
| 511112 | Ø100×30 mm | 35 daN | C/B | — | 51 100X28 CB F8 LM35 |
| 511122 | Ø100×30 mm | 35 daN | C/B | — | 51 100X28 CB F12 LM35 |
| 511103 | Ø125×35 mm | 50 daN | C/B | — | 51 125X35 CB F15 LM44 |
| 511104 | Ø150×35 mm | 90 daN | C/B | — | 51 150X35 CB F15 LM44 |
| 511105 | Ø175×45 mm | 100 daN | C/B | — | This article |
| 511106 | Ø200×50 mm | 120 daN | C/B | — | 51 200X50 CB F20 LM58 |
| 511108 | Ø250×50 mm | 120 daN | C/B | — | 51 250X50 CB F20 LM58 |
Similar alternatives

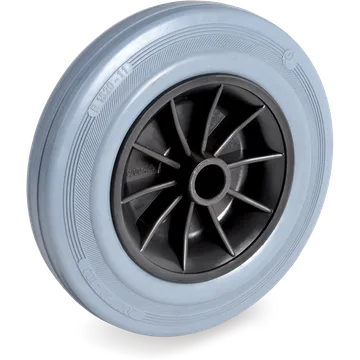

- 221105Series 22

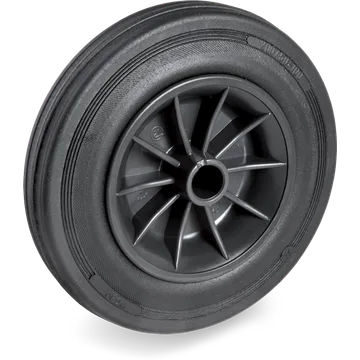

521105Series 52

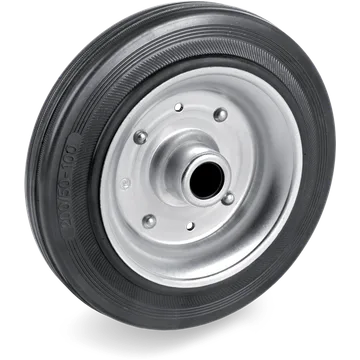

531105Series 53Rubber wheel Ø180×45 mm
Ruedas en goma standard, núcleo formado por 2 llantas de chapa
Load capacity: 200 daN

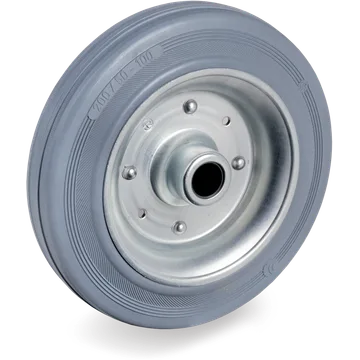

231110Series 23Rubber wheel Ø160×40 mm
Ruedas en goma antihuella, núcleo formado por 2 llantas de chapa
Load capacity: 180 daN
