729608Series 72GHElastic rubber swivel castor Ø300×85 mm with brake
Ruedas de goma Sigma Elastic, núcleo de hierro fundido mecanico, soporte giratorio EE HD, freno trasero regulable
Load capacity: 950 daN
729308D4Representative image of the familyElastic rubber swivel castor Ø300×85 mm
Ruedas de goma Sigma Elastic, núcleo de hierro fundido mecanico, soporte giratorio EE HD
Tellure description: 72 300X85 C/C SRP/EE 300 MEDIO 4 INTAGLI
- Diameter (D)
- Ø 300mm
- Width (F)
- 85mm
- Load at 4 km/h
- 950daN
- Tread
- Elastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 729308D4
- Series
- Tellure Rôta 72
- Tread
- Elastic rubber
- Diameter (D)
- 300 mm
- Width (F)
- 85 mm
- Load at 4 km/h
- 950 daN
- Load at 6 km/h
- 760 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas de goma Sigma Elastic, núcleo de hierro fundido mecanico, soporte giratorio EE HD
9 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 729316 | Ø200×75 mm | 700 daN | C/C 2Z | No | 72GH 200X75 CC SRP/EEHD R3.0 |
| 729316D2 | Ø200×75 mm | 700 daN | C/C 2Z | No | 72 200X75 C/C SRP/EE 200 MEDIO 2 INTAGLI |
| 729316D4 | Ø200×75 mm | 700 daN | C/C 2Z | No | 72 200X75 C/C SRP/EE 200 MEDIO 4 INTAGLI |
| 729307 | Ø250×75 mm | 800 daN | C/C 2Z | No | 72GH 250X75 CC SRP/EEHD R3.0 |
| 729307D2 | Ø250×75 mm | 800 daN | C/C 2Z | No | 72 250X75 C/C SRP/EE 250 MEDIO 2 INTAGLI |
| 729307D4 | Ø250×75 mm | 800 daN | C/C 2Z | No | 72 250X75 C/C SRP/EE 250 MEDIO 4 INTAGLI |
| 729308 | Ø300×85 mm | 950 daN | C/C 2Z | No | 72GH 300X85 CC SRP/EEHD R3.0 |
| 729308D2 | Ø300×85 mm | 950 daN | C/C 2Z | No | 72 300X85 C/C SRP/EE 300 MEDIO 2 INTAGLI |
| 729308D4 | Ø300×85 mm | 950 daN | C/C 2Z | No | This article |
Similar alternatives
- 729608Series 72GH

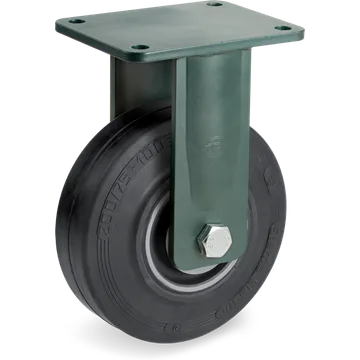

729408Series 72GHElastic rubber fixed castor Ø300×85 mm
