629813Series 62ERTR-Roll polyurethane swivel castor Ø125×50 mm with brake
Ruedas de poliuretano "TR Roll" con perfil redondo con núcleo de aluminio, soportes giratorios electrosoldados (EE MHD)
Load capacity: 450 daN

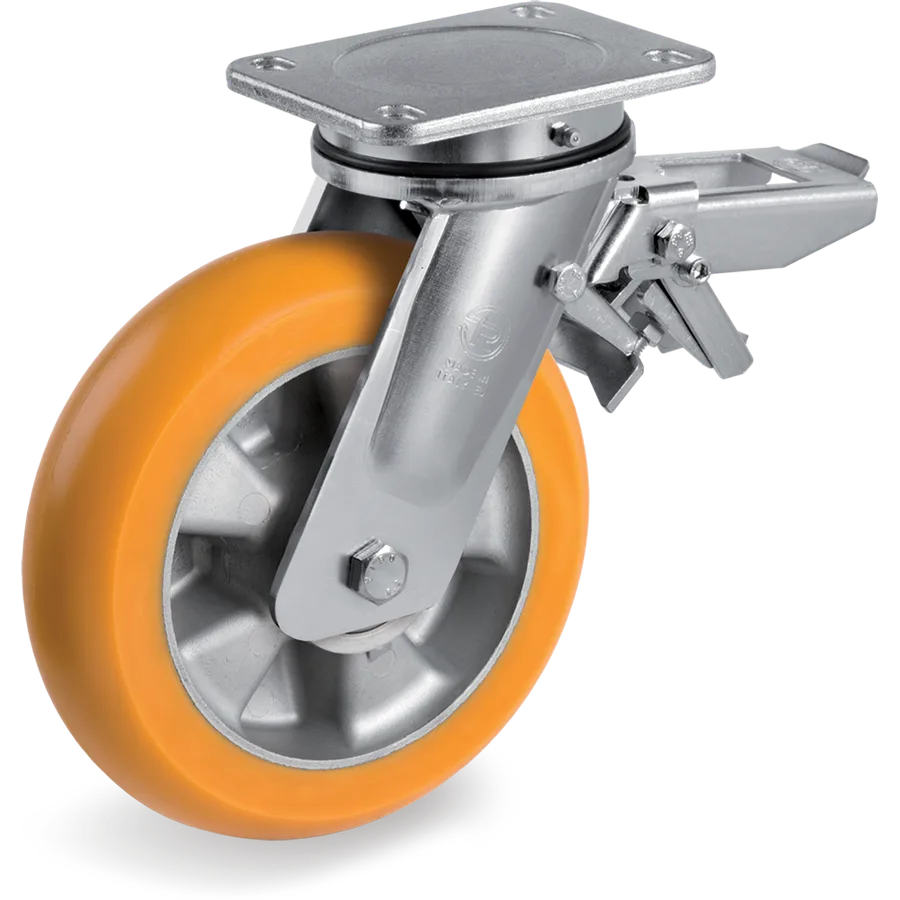

656333Representative image of the familyTR polyurethane swivel castor Ø125×40 mm with brake
Ruedas de poliuretano TR con perfil redondo con núcleo de aluminio, soportes giratorios electrosoldados (EE MHD) con freio
Tellure description: 65ER 125X40 CC SRP/EEMHD+FP R2.1
- Diameter (D)
- Ø 125mm
- Width (F)
- 40mm
- Load at 4 km/h
- 450daN
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 656333
- Series
- Tellure Rôta 65ER
- Tread
- TR polyurethane
- Diameter (D)
- 125 mm
- Width (F)
- 40 mm
- Load at 4 km/h
- 450 daN
- Load at 6 km/h
- 360 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Rear brake
Other sizes in this family
Ruedas de poliuretano TR con perfil redondo con núcleo de aluminio, soportes giratorios electrosoldados (EE MHD) con freio
9 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 656333 | Ø125×40 mm | 450 daN | C/C 2Z | Yes | This article |
| 656333B2 | Ø125×40 mm | 450 daN | C/C 2Z | Yes | 65ER 125X40 SRP/EE FR.LEGGERO 2 INTAGLI |
| 656333B4 | Ø125×40 mm | 450 daN | C/C 2Z | Yes | 65ER 125X40 SRP/EE FR.LEGGERO 4 INTAGLI |
| 656334 | Ø160×50 mm | 700 daN | C/C 2Z | Yes | 65ER 160X50 CC SRP/EEMHD+FP R2.1 |
| 656334B2 | Ø160×50 mm | 700 daN | C/C 2Z | Yes | 65ER 160X50 SRP/EE FR.LEGGERO BOMB.CIRC. 2 INTAGLI |
| 656334B4 | Ø160×50 mm | 700 daN | C/C 2Z | Yes | 65ER 160X50 SRP/EE FR.LEGGERO BOMB.CIRC. 4 INTAGLI |
| 656336 | Ø200×50 mm | 800 daN | C/C 2Z | Yes | 65ER 200X50 CC SRP/EEMHD+FP R2.1 |
| 656336B2 | Ø200×50 mm | 800 daN | C/C 2Z | Yes | 65ER 200X50 SRP/EE FR.LEGGERO 2 INTAGLI |
| 656336B4 | Ø200×50 mm | 800 daN | C/C 2Z | Yes | 65ER 200X50 SRP/EE FR.LEGGERO 4 INTAGLI |
