638404Series 63GHVulkollan® fixed castor Ø150×50 mm
Ruedas de Vulkollan®, núcleo de hierro fundido mecánico, soporte fijo EE MHD
Load capacity: 750 daN

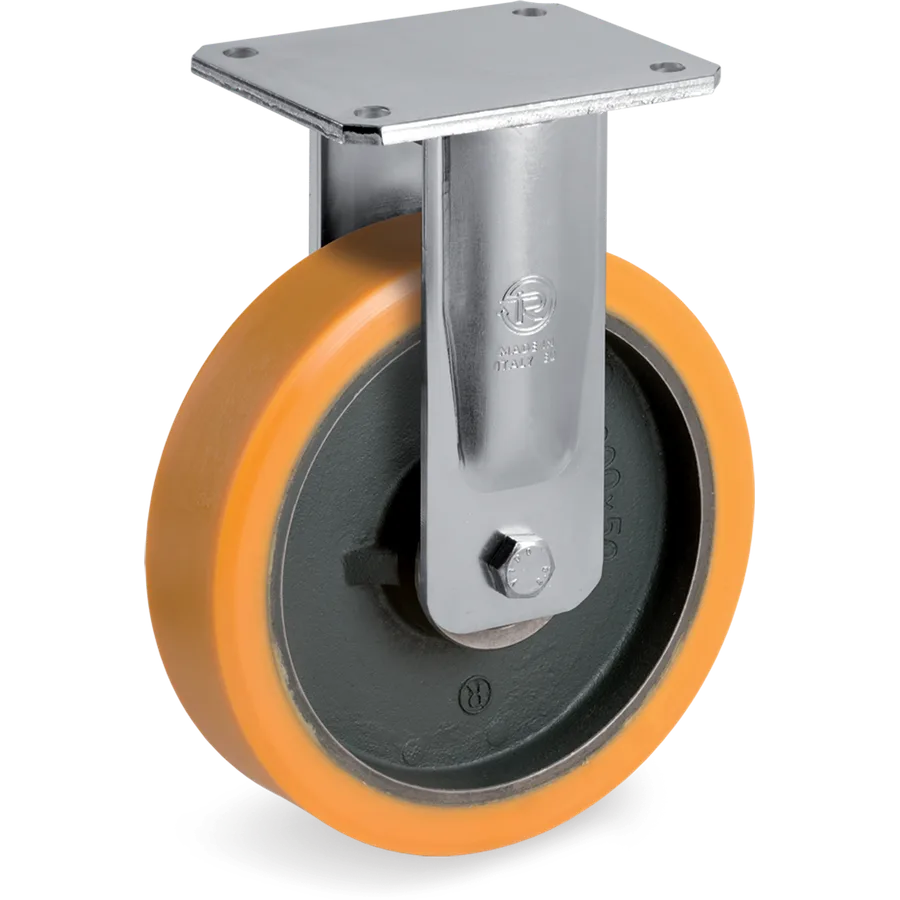

648404Representative image of the familyTR polyurethane fixed castor Ø150×50 mm
Ruedas de poliuretano TR, núcleo de hierro fundido mecánico, soporte fijo EE MHD
Tellure description: 64 150X50 CC SF/EEMHD R2.1
- Diameter (D)
- Ø 150mm
- Width (F)
- 50mm
- Load at 4 km/h
- 750daN
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 648404
- Series
- Tellure Rôta 64
- Tread
- TR polyurethane
- Diameter (D)
- 150 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 750 daN
- Load at 6 km/h
- 600 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas de poliuretano TR, núcleo de hierro fundido mecánico, soporte fijo EE MHD
6 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 648403 | Ø125×50 mm | 550 daN | C/C 2Z | No | 64 125X50 CC SF/EEMHD R2.1 |
| 648404 | Ø150×50 mm | 750 daN | C/C 2Z | No | This article |
| 648414 | Ø160×50 mm | 750 daN | C/C 2Z | No | 64 160X50 CC SF/EEMHD R2.1 |
| 648405 | Ø180×50 mm | 900 daN | C/C 2Z | No | 64 180X50 CC SF/EEMHD R2.1 |
| 648406 | Ø200×50 mm | 1,000 daN | C/C 2Z | No | 64 200X50 CC SF/EEMHD R2.1 |
| 648437 | Ø250×50 mm | 1,200 daN | C/C 2Z | No | 64 250X50 CC SF/EEMHD R2.1 |
Similar alternatives
- 638404Series 63GH

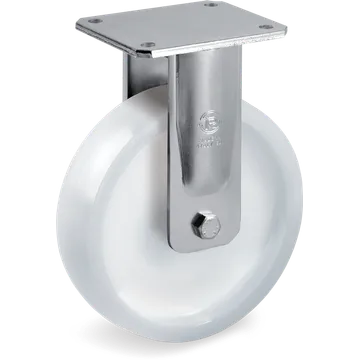

688404Series 68PPolyamide 6 fixed castor Ø150×45 mm
Ruedas monobloque en poliamida 6 para grandes cargas, soporte fijo EE MHD
Load capacity: 750 daN

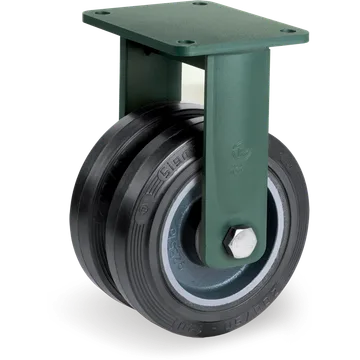

728174Series 72GHElastic rubber fixed castor Ø150 mm
Ruedas de goma Sigma Elastic, núcleo en hierro fundido mecánico, soporte fijo EEG HD
Load capacity: 800 daN

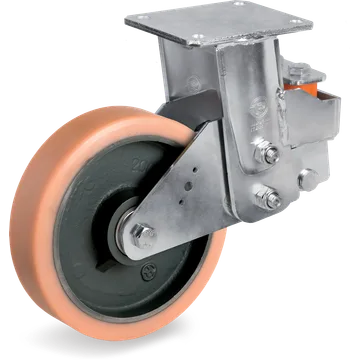

639404Series 63GHVulkollan® fixed castor Ø160×50 mm
Ruedas de Vulkollan®, núcleo de hierro fundido, soporte fijo con amortiguación a pletina EES MHD
Load capacity: 750 daN
