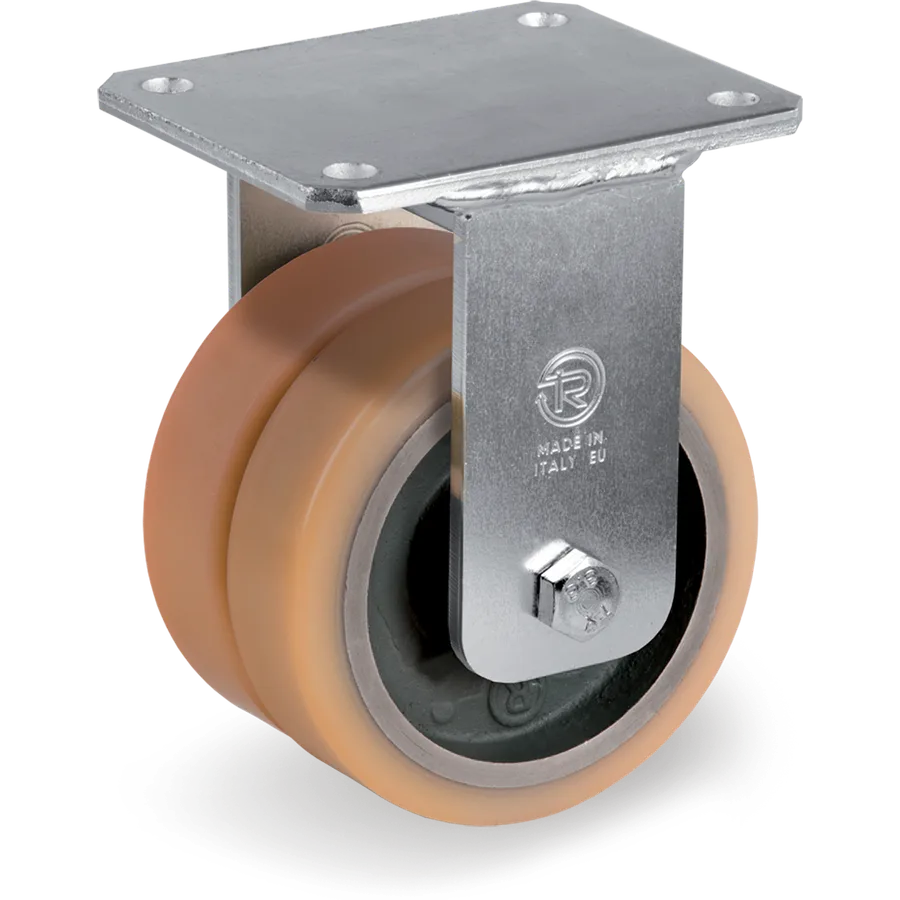

638163Representative image of the familyVulkollan® fixed castor Ø125 mm
Ruedas de Vulkollan®, núcleo de hierro fundido mecánico, soporte fijo EEG MHD
Tellure description: 63GH 125X38+38 CC SF/EEGMHD R2.1
- Diameter (D)
- Ø 125mm
- Load at 4 km/h
- 900daN
- Tread
- Vulkollan®
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 638163
- Series
- Tellure Rôta 63GH
- Tread
- Vulkollan®
- Diameter (D)
- 125 mm
- Load at 4 km/h
- 900 daN
- Load at 6 km/h
- 720 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas de Vulkollan®, núcleo de hierro fundido mecánico, soporte fijo EEG MHD
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 638162 | Ø100 mm | 700 daN | C/C 2Z | No | 63GH 100X38+38 CC SF/EEGMHD R2.1 |
| 638163 | Ø125 mm | 900 daN | C/C 2Z | No | This article |
