628274Series 62ALTR-Roll polyurethane swivel castor Ø160 mm with brake
Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte giratorio pletina EEG MHD con freno trasero
Load capacity: 1,100 daN

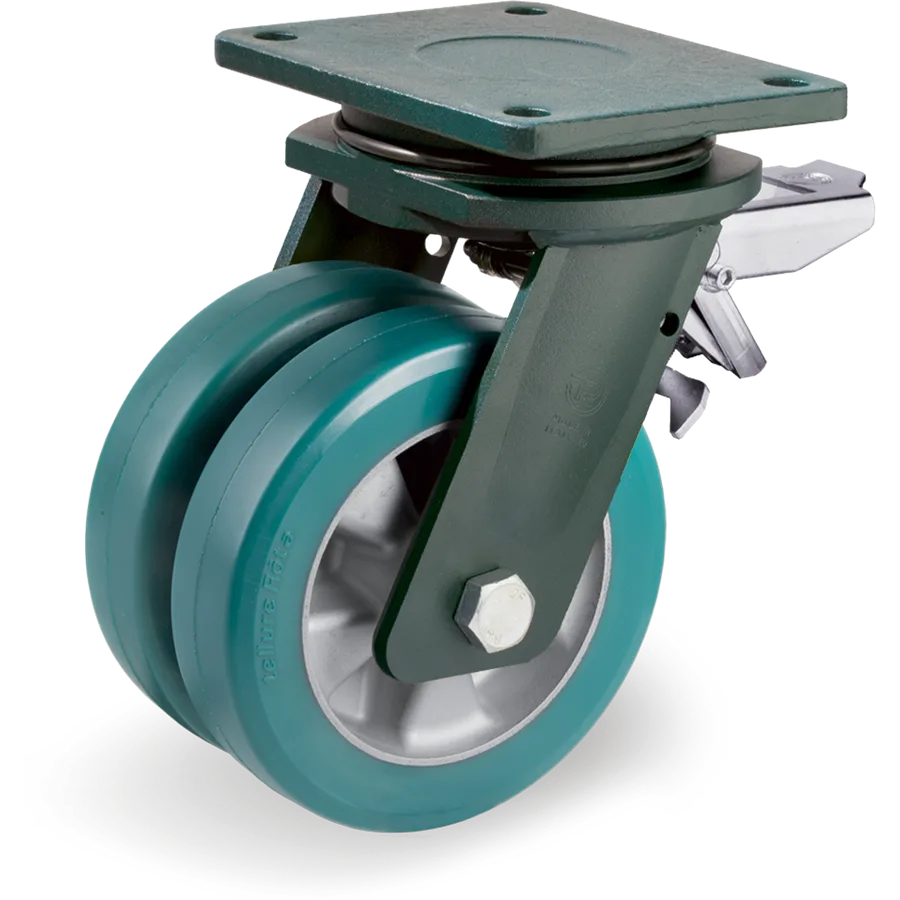

628784Representative image of the familyTR-Roll polyurethane swivel castor Ø160 mm with brake
Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte giratorio pletina EEG HD, freno trasero
Tellure description: 62AL 160X50+50 CC SRP/EEGHD+FP R3.0
- Diameter (D)
- Ø 160mm
- Load at 4 km/h
- 1,100daN
- Tread
- TR-Roll polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 628784
- Series
- Tellure Rôta 62AL
- Tread
- TR-Roll polyurethane
- Diameter (D)
- 160 mm
- Load at 4 km/h
- 1,100 daN
- Load at 6 km/h
- 1,100 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Forged steel
- Brake
- Yes
- Brake type
- Rear brake
Other sizes in this family
Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte giratorio pletina EEG HD, freno trasero
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 628784 | Ø160 mm | 1,100 daN | C/C 2Z | Yes | This article |
| 628766 | Ø200 mm | 1,400 daN | C/C 2Z | Yes | 62AL 200X50+50 CC SRP/EEGHD+FP R3.0 |
