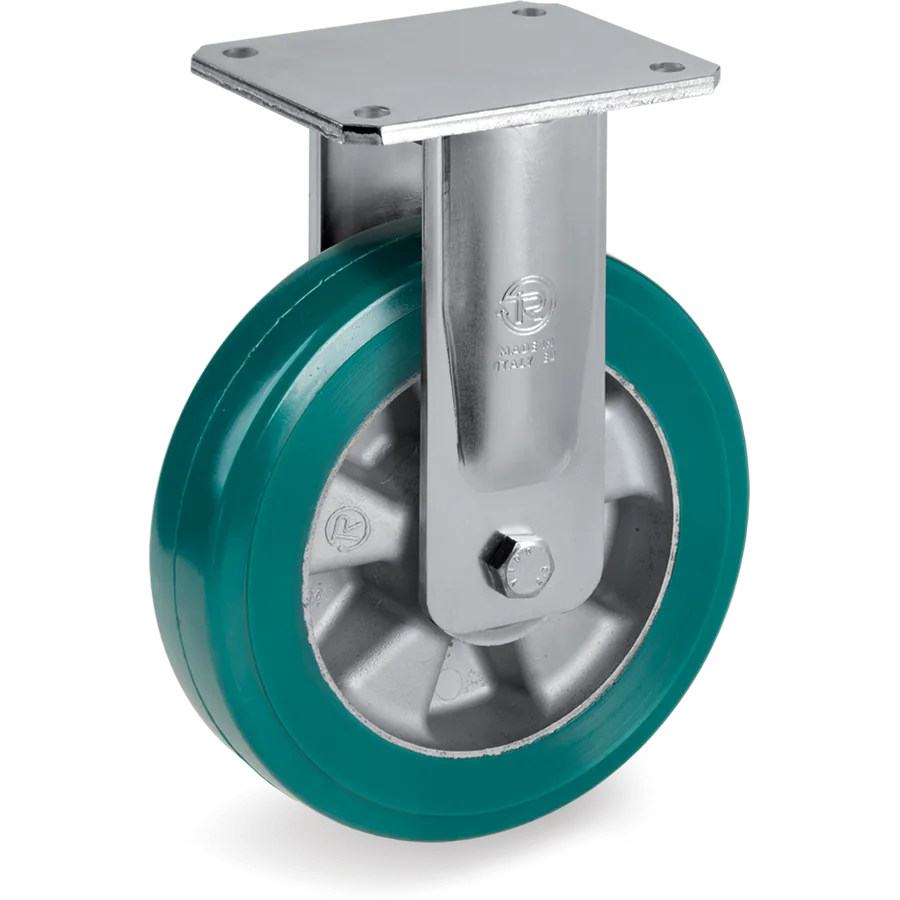

628402Representative image of the familyTR-Roll polyurethane fixed castor Ø100×40 mm
Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte fijo EE MHD
Tellure description: 62AL 100X40 CC SF/EEMHD R2.1
- Diameter (D)
- Ø 100mm
- Width (F)
- 40mm
- Load at 4 km/h
- 300daN
- Tread
- TR-Roll polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 628402
- Series
- Tellure Rôta 62AL
- Tread
- TR-Roll polyurethane
- Diameter (D)
- 100 mm
- Width (F)
- 40 mm
- Load at 4 km/h
- 300 daN
- Load at 6 km/h
- 300 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte fijo EE MHD
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 628402 | Ø100×40 mm | 300 daN | C/C 2Z | No | This article |
| 628403 | Ø125×40 mm | 350 daN | C/C 2Z | No | 62AL 125X40 CC SF/EEMHD R2.1 |
| 628414 | Ø160×50 mm | 550 daN | C/C 2Z | No | 62AL 160X50 CC SF/EEMHD R2.1 |
| 628405 | Ø180×50 mm | 600 daN | C/C 2Z | No | 62AL 180X50 CC SF/EEMHD R2.1 |
| 628406 | Ø200×50 mm | 700 daN | C/C 2Z | No | 62AL 200X50 CC SF/EEMHD R2.1 |
