648415Series 64TR polyurethane fixed castor Ø150×78 mm
Ruedas de poliuretano TR, núcleo de hierro fundido mecánico, soporte fijo EE HD
Load capacity: 1,000 daN

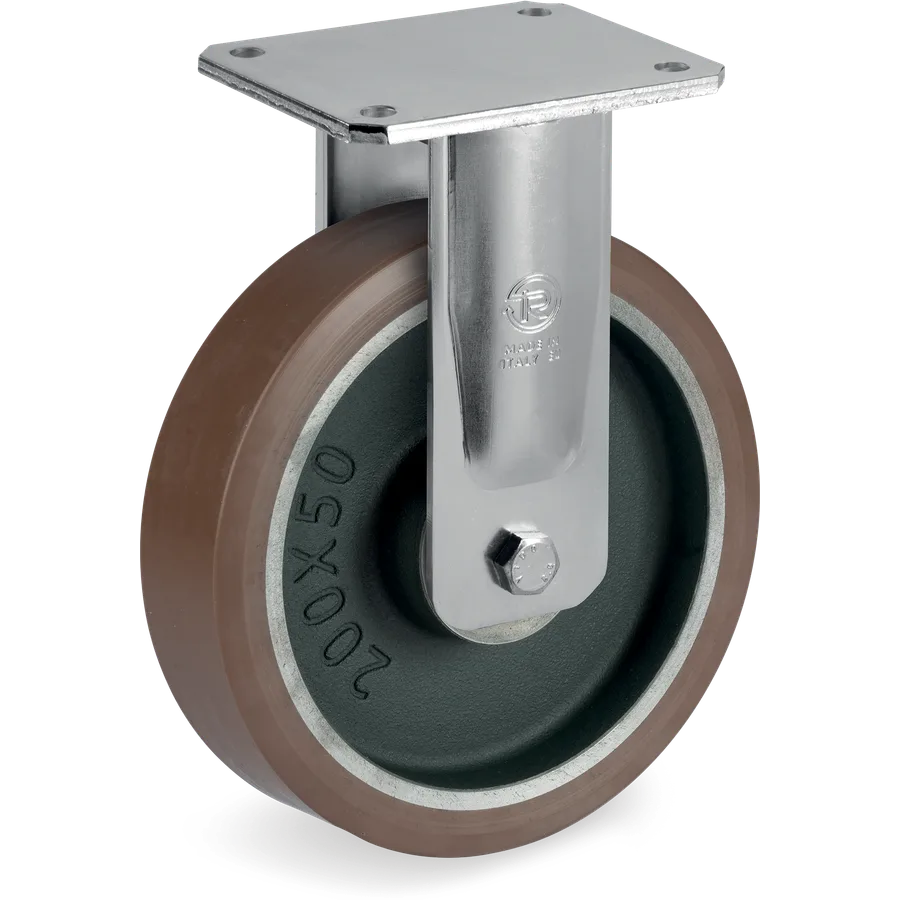

588404Representative image of the familyTR-PowerHigh polyurethane fixed castor Ø150×50 mm
Ruedas de poliuretano TR-PowerHigh, núcleo de hierro fundido mecánico, soporte fijo EE MHD
Tellure description: 58GH 150X50 CC SF/EEMHD R2.1
- Diameter (D)
- Ø 150mm
- Width (F)
- 50mm
- Load at 4 km/h
- 900daN
- Tread
- TR-PowerHigh polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 588404
- Series
- Tellure Rôta 58GH
- Tread
- TR-PowerHigh polyurethane
- Diameter (D)
- 150 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 900 daN
- Load at 6 km/h
- 720 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas de poliuretano TR-PowerHigh, núcleo de hierro fundido mecánico, soporte fijo EE MHD
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 588403 | Ø125×50 mm | 750 daN | C/C 2Z | No | 58GH 125X50 CC SF/EEMHD R2.1 |
| 588404 | Ø150×50 mm | 900 daN | C/C 2Z | No | This article |
| 588414 | Ø160×50 mm | 900 daN | C/C 2Z | No | 58GH 160X50 CC SF/EEMHD R2.1 |
| 588406 | Ø200×50 mm | 1,100 daN | C/C 2Z | No | 58GH 200X50 CC SF/EEMHD R2.1 |
| 588437 | Ø250×50 mm | 1,250 daN | C/C 2Z | No | 58GH 250X50 CC SF/EEMHD R2.1 |
Similar alternatives
- 648415Series 64
728174Series 72GHElastic rubber fixed castor Ø150 mm
Ruedas de goma Sigma Elastic, núcleo en hierro fundido mecánico, soporte fijo EEG HD
Load capacity: 800 daN
589404Series 58TR-PowerHigh polyurethane fixed castor Ø160×50 mm
Ruedas en poliuretano TR-PowerHigh, núcleo de hierro fundido, soporte fijo con amortiguación a pletina EES MHD
Load capacity: 950 daN
638404Series 63GHVulkollan® fixed castor Ø150×50 mm
Ruedas de Vulkollan®, núcleo de hierro fundido mecánico, soporte fijo EE MHD
Load capacity: 750 daN
