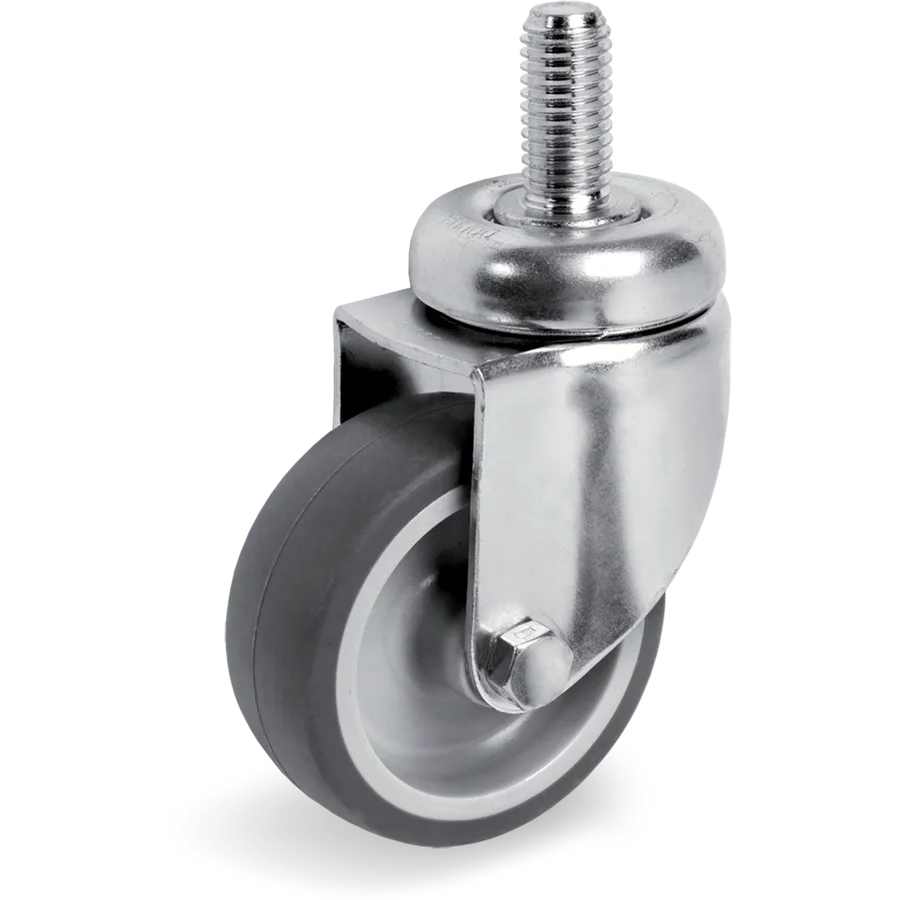

386101Representative image of the familyThermoplastic rubber swivel castor Ø50×18 mm
Ruedas de Goma termoplástica, nucleo de polipropileno, soporte giratorio con espiga
Tellure description: 38 50X18 CB SRC/FIL M10X20
- Diameter (D)
- Ø 50mm
- Width (F)
- 18mm
- Tread
- Thermoplastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 386101
- Series
- Tellure Rôta 38
- Tread
- Thermoplastic rubber
- Diameter (D)
- 50 mm
- Width (F)
- 18 mm
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Fitting
- Stem
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas de Goma termoplástica, nucleo de polipropileno, soporte giratorio con espiga
10 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 386100 | Ø40×18 mm | — | C/B | No | 38 40X18 CB SRC/FIL M10X20 |
| 386200 | Ø40×18 mm | — | C/B | No | 38 40X18 CB SRC/FIL M8X15 |
| 386101 | Ø50×18 mm | — | C/B | No | This article |
| 386201 | Ø50×18 mm | — | C/B | No | 38 50X18 CB SRC/FIL M8X15 |
| 386202 | Ø60×25 mm | — | C/B | No | 38 60X25 CB SRC/FIL M12X25 |
| 386402 | Ø60×25 mm | — | C/B | No | 38 60X25 CB SRC/FIL M10X20 |
| 386303 | Ø75×23 mm | — | C/B | No | 38 75X23 CB SRC/FIL M12X25 |
| 386603 | Ø75×23 mm | — | C/B | No | 38 75X23 CB SRC/FIL M10X20 |
| 386203 | Ø75×24 mm | — | C/B | No | 38 80X24 CB SRC/FIL M12X25 |
| 386403 | Ø80×24 mm | — | C/B | No | 38 80X24 CB SRC/FIL M10X20 |
