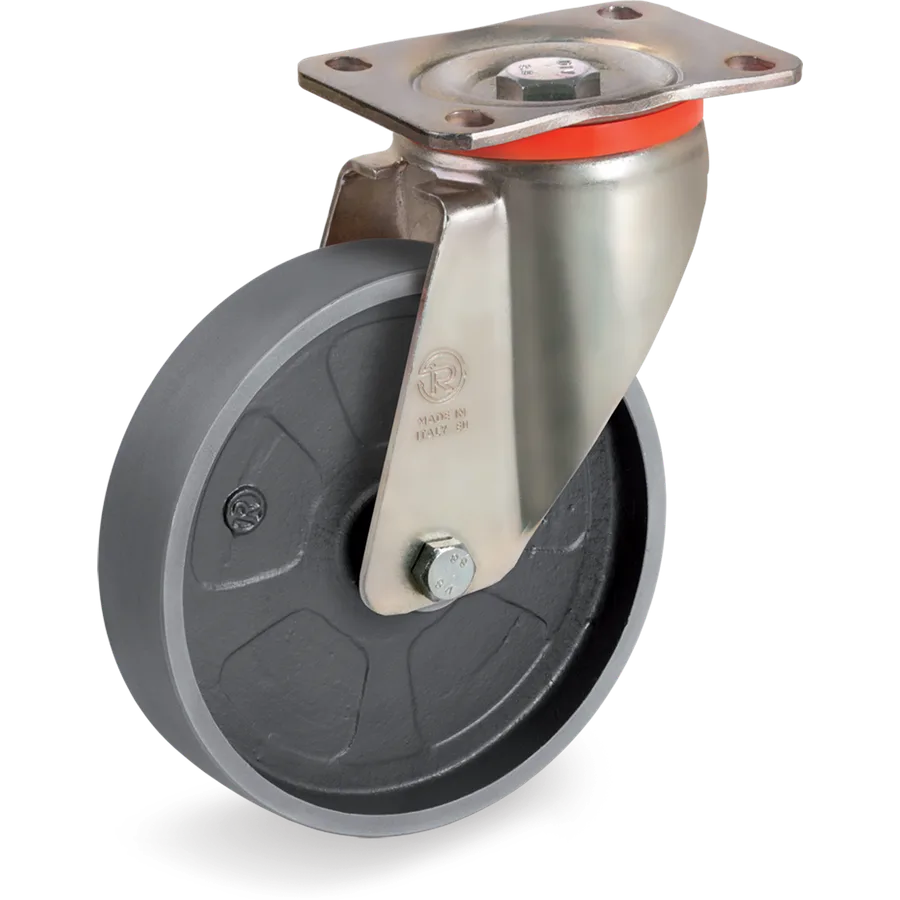

697506Representative image of the familyCast iron swivel castor Ø200×45 mm
Ruedas monobloque en hierro fundido mecánico para mecánica, soporte giratorio pletina P
Tellure description: 69 200X45 CB SRP/P R2.0
- Diameter (D)
- Ø 200mm
- Width (F)
- 45mm
- Load at 4 km/h
- 750daN
- Tread
- Cast iron
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 697506
- Series
- Tellure Rôta 69
- Tread
- Cast iron
- Diameter (D)
- 200 mm
- Width (F)
- 45 mm
- Load at 4 km/h
- 750 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas monobloque en hierro fundido mecánico para mecánica, soporte giratorio pletina P
6 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 696203 | Ø125×40 mm | 350 daN | C/C 2Z | No | 69 125X40 CC SRP/P R1.0 |
| 697603 | Ø125×40 mm | 350 daN | C/B | No | 69 125X40 CB SRP/P R1.0 |
| 697504 | Ø150×45 mm | 750 daN | C/B | No | 69 150X45 CB SRP/P R2.0 |
| 696204 | Ø150×50 mm | 750 daN | C/C 2Z | No | 69 150X50 CC SRP/P R2.0 |
| 697506 | Ø200×45 mm | 750 daN | C/B | No | This article |
| 696206 | Ø200×50 mm | 750 daN | C/C 2Z | No | 69 200X50 CC SRP/P R2.0 |
Similar alternatives
- 585856Series 58

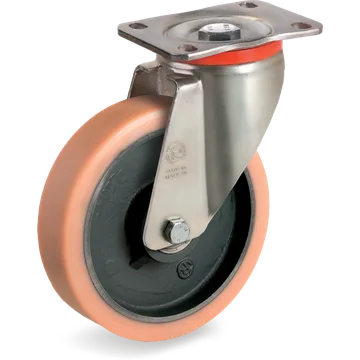

635856Series 63GHVulkollan® swivel castor Ø200×50 mm
Ruedas de poliuretano Vulkollan®, núcleo de hierro fundido, soporte giratorio pletina P
Load capacity: 750 daN

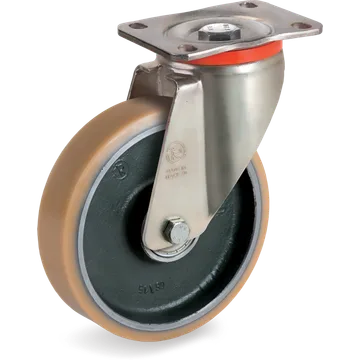

637626Series 63ACVulkollan® swivel castor Ø200×50 mm
Ruedas en poliuretano Vulkollan®, núcleo en acero forjado, soporte giratorio pletina P
Load capacity: 750 daN

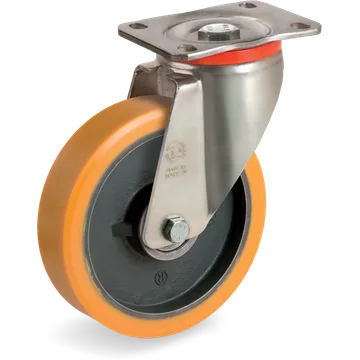

645856Series 64TR polyurethane swivel castor Ø200×50 mm
