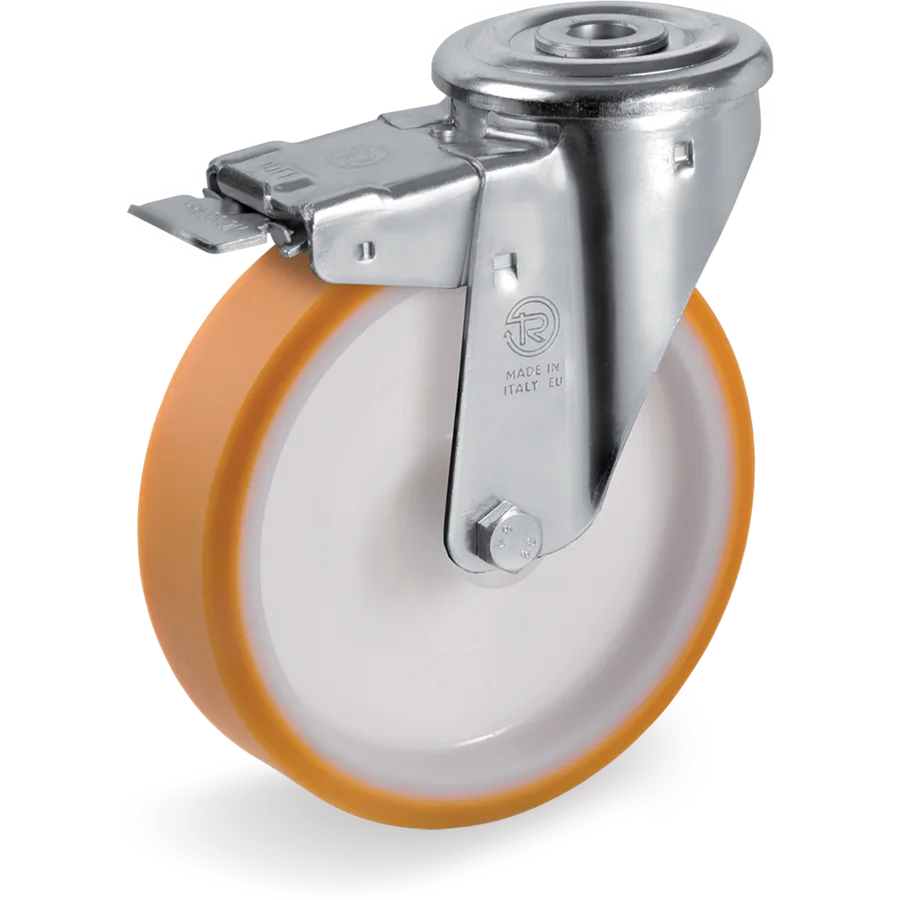

666424Representative image of the familyTR polyurethane swivel castor Ø150×40 mm with brake
Ruedas en poliuretano "TR", núcleo en poliamida, soporte giratorio taladro pasador NL freno delantero
Tellure description: 66 150X40 CR SRF/NL+FA C2
- Diameter (D)
- Ø 150mm
- Width (F)
- 40mm
- Load at 4 km/h
- 300daN
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 666424
- Series
- Tellure Rôta 66
- Tread
- TR polyurethane
- Diameter (D)
- 150 mm
- Width (F)
- 40 mm
- Load at 4 km/h
- 300 daN
- Bearing
- Roller bearing
Bracket
- Bracket type
- Swivel
- Fitting
- Bolt hole
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Front brake
Other sizes in this family
Ruedas en poliuretano "TR", núcleo en poliamida, soporte giratorio taladro pasador NL freno delantero
12 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 666401 | Ø80×25 mm | 150 daN | C/B | Yes | 66 80X25 CB SRF/NL+FA C1 |
| 666421 | Ø80×25 mm | 150 daN | C/R | Yes | 66 80X25 CR SRF/NL+FA C1 |
| 666402 | Ø100×30 mm | 200 daN | C/B | Yes | 66 100X30 CB SRF/NL+FA C1 |
| 666422 | Ø100×30 mm | 200 daN | C/R | Yes | 66 100X30 CR SRF/NL+FA C1 |
| 666403 | Ø125×30 mm | 220 daN | C/B | Yes | 66 125X30 CB SRF/NL+FA C1 |
| 666423 | Ø125×30 mm | 220 daN | C/R | Yes | 66 125X30 CR SRF/NL+FA C1 |
| 666404 | Ø150×40 mm | 300 daN | C/B | Yes | 66 150X40 CB SRF/NL+FA C2 |
| 666424 | Ø150×40 mm | 300 daN | C/R | Yes | This article |
| 666405 | Ø175×40 mm | 300 daN | C/B | Yes | 66 175X40 CB SRF/NL+FA C2 |
| 666425 | Ø175×40 mm | 300 daN | C/R | Yes | 66 175X40 CR SRF/NL+FA C2 |
| 666406 | Ø200×50 mm | 300 daN | C/B | Yes | 66 200X50 CB SRF/NL+FA C2 |
| 666426 | Ø200×50 mm | 300 daN | C/R | Yes | 66 200X50 CR SRF/NL+FA C2 |
Similar alternatives
- 585464Series 58

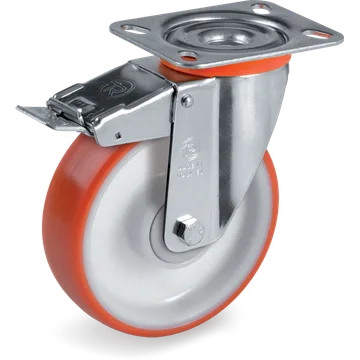

604911Series 60Thermoplastic polyurethane swivel castor Ø150×45 mm with brake
Ruedas en poliuretano inyectado, núcleo en poliamida 6, soporte giratorio pletina NL freno delantero
Load capacity: 300 daN

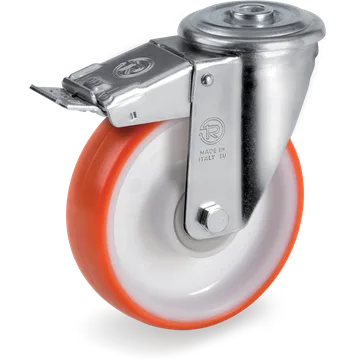

605511Series 60Thermoplastic polyurethane swivel castor Ø150×45 mm with brake
Ruedas en poliuretano inyectado, núcleo en poliamida 6, soporte giratorio taladro pasador NL freno delantero
Load capacity: 300 daN

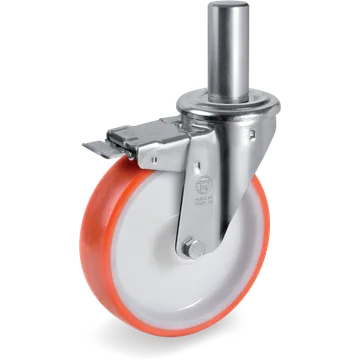

606211Series 60Thermoplastic polyurethane swivel castor Ø150×45 mm with brake
