584654Series 58TR-PowerHigh polyurethane fixed castor Ø150×50 mm
Ruedas de poliuretano TR-PowerHigh, núcleo en hierro fundido mecánico, soporte fijo NL-M
Load capacity: 500 daN

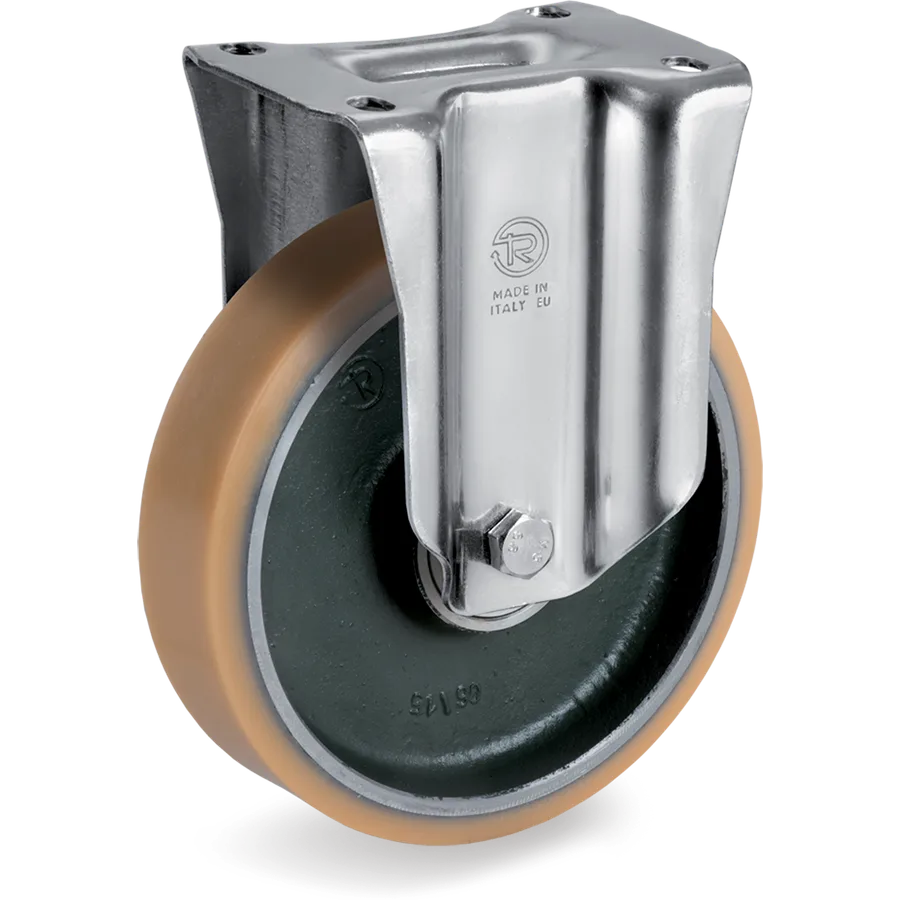

638224Representative image of the familyVulkollan® fixed castor Ø150×40 mm
Ruedas en poliuretano Vulkollan®, núcleo en acero forjado, soporte fijo NL-M
Tellure description: 63AC 150X40 CC SF/NL-M R2.0
- Diameter (D)
- Ø 150mm
- Width (F)
- 40mm
- Load at 4 km/h
- 500daN
- Tread
- Vulkollan®
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 638224
- Series
- Tellure Rôta 63AC
- Tread
- Vulkollan®
- Diameter (D)
- 150 mm
- Width (F)
- 40 mm
- Load at 4 km/h
- 500 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas en poliuretano Vulkollan®, núcleo en acero forjado, soporte fijo NL-M
6 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 638222 | Ø100×30 mm | 200 daN | C/C 2Z | No | 63AC 100X30 CC SF/NL R1.0 |
| 638223 | Ø125×40 mm | 220 daN | C/C 2Z | No | 63AC 125X40 CC SF/NL R1.0 |
| 638214 | Ø150×40 mm | 220 daN | C/C 2Z | No | 63AC 150X40 CC SF/NLL R1.0 |
| 638224 | Ø150×40 mm | 500 daN | C/C 2Z | No | This article |
| 638225 | Ø175×40 mm | 500 daN | C/C 2Z | No | 63AC 175X40 CC SF/NL R2.0 |
| 638226 | Ø200×50 mm | 500 daN | C/C 2Z | No | 63AC 200X50 CC SF/NL-M R2.0 |
Similar alternatives
- 584654Series 58

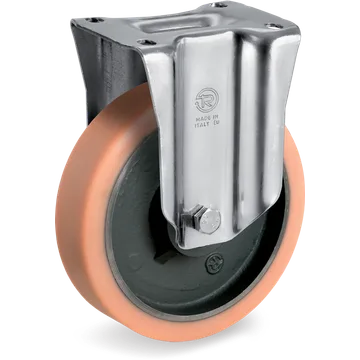

634654Series 63GHVulkollan® fixed castor Ø150×50 mm
Ruedas de poliuretano Vulkollan®, núcleo de hierro fundido, soporte fijo NL-M
Load capacity: 500 daN

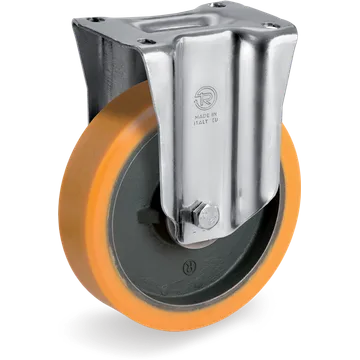

644654Series 64TR polyurethane fixed castor Ø150×50 mm
Ruedas en poliuretano "TR", núcleo en hierro fundido mecánico, soporte fijo NL-M
Load capacity: 500 daN

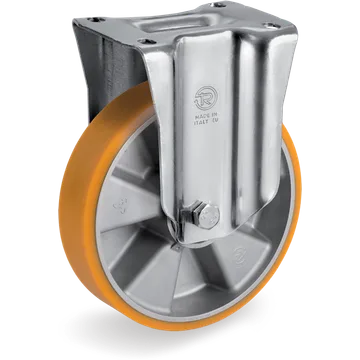

658104Series 65ALTR polyurethane fixed castor Ø150×40 mm
Ruedas en poliuretano "TR", núcleo en aluminio, soporte fijo NL-M
Load capacity: 500 daN
