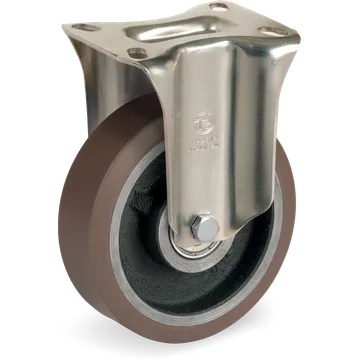

586853Series 58GHTR-PowerHigh polyurethane fixed castor Ø125×38 mm
Ruedas en poliuretano TR-PowerHigh, núcleo en hierro fundido mecánico, soporte fijo P
Load capacity: 350 daN
588853Representative image of the familyTR-PowerHigh polyurethane fixed castor Ø125×38 mm
Ruedas de poliuretano TR-PowerHigh, núcleo en hierro fundido mecánico, soporte fijo EP
Tellure description: 58 125X38 CC SF/EP R1.0
- Diameter (D)
- Ø 125mm
- Width (F)
- 38mm
- Load at 4 km/h
- 350daN
- Tread
- TR-PowerHigh polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 588853
- Series
- Tellure Rôta 58
- Tread
- TR-PowerHigh polyurethane
- Diameter (D)
- 125 mm
- Width (F)
- 38 mm
- Load at 4 km/h
- 350 daN
- Load at 6 km/h
- 350 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas de poliuretano TR-PowerHigh, núcleo en hierro fundido mecánico, soporte fijo EP
8 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 588852 | Ø100×38 mm | 350 daN | C/C 2Z | No | 58 100X38 CC SF/EP R1.0 |
| 588853 | Ø125×38 mm | 350 daN | C/C 2Z | No | This article |
| 588863 | Ø125×50 mm | 550 daN | C/C 2Z | No | 58 125X50 CC SF/EP R2.1 |
| 588854 | Ø150×50 mm | 900 daN | C/C 2Z | No | 58 150X50 CC SF/EP R2.1 |
| 588864 | Ø160×50 mm | 950 daN | C/C 2Z | No | 58 160X50 CC SF/EP R2.1 |
| 588856 | Ø200×50 mm | 1,100 daN | C/C 2Z | No | 58 200X50 CC SF/EP R2.1 |
| 588866 | Ø200×78 mm | 1,600 daN | C/C 2Z | No | 58 200X78 CC SF/EP R3.0 |
| 588857 | Ø250×60 mm | 1,500 daN | C/C 2Z | No | 58 250X60 CC SF/EP R3.0 |
Similar alternatives
- 586853Series 58GH

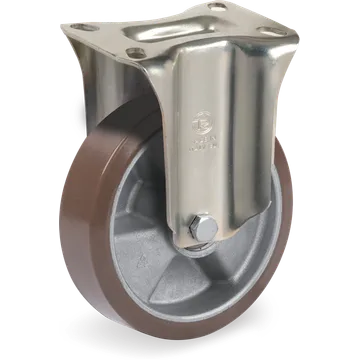

588603Series 58ALTR-PowerHigh polyurethane fixed castor Ø125×35 mm
Ruedas en poliuretano TR-PowerHigh, núcleo en aluminio, soporte fijo P-PT
Load capacity: 350 daN

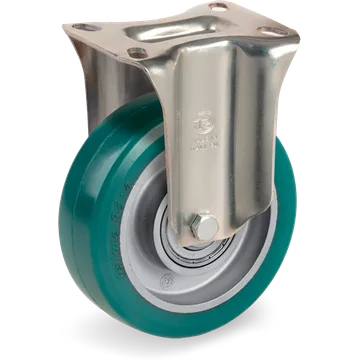

628503Series 62ALTR-Roll polyurethane fixed castor Ø125×40 mm
Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte fijo P
Load capacity: 350 daN

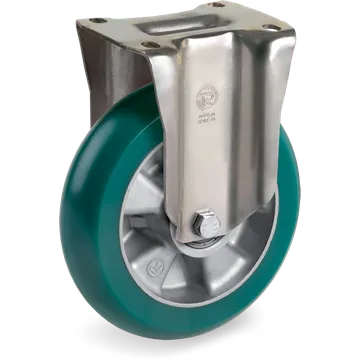

629103Series 62ERTR-Roll polyurethane fixed castor Ø125×40 mm
