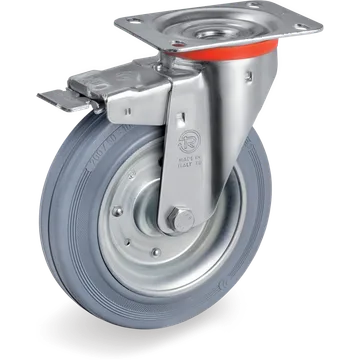

235204Series 23Rubber swivel castor Ø140×37.5 mm with brake
Ruedas en goma antihuella, núcleo formado por 2 llantas de chapa, soporte giratorio pletina NL freno delantero
Load capacity: 150 daN
535424Representative image of the familyRubber swivel castor Ø140×37.5 mm with brake
Ruedas en goma standard, núcleo formado por 2 llantas de chapa, soporte giratorio pletina NL freno delantero
Tellure description: 53 140X37,5 CR SRP/NL+FA R1.0
- Diameter (D)
- Ø 140mm
- Width (F)
- 37.5mm
- Load at 4 km/h
- 150daN
- Tread
- Rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 535424
- Series
- Tellure Rôta 53
- Tread
- Rubber
- Diameter (D)
- 140 mm
- Width (F)
- 37.5 mm
- Load at 4 km/h
- 150 daN
- Bearing
- Roller bearing
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Front brake
Other sizes in this family
Ruedas en goma standard, núcleo formado por 2 llantas de chapa, soporte giratorio pletina NL freno delantero
18 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 535401 | Ø80×25 mm | 65 daN | C/B | Yes | 53 80X25 CB SRP/NL+FA R1.0 |
| 535421 | Ø80×25 mm | 65 daN | C/R | Yes | 53 80X25 CR SRP/NL+FA R1.0 |
| 535402 | Ø100×30 mm | 80 daN | C/B | Yes | 53 100X30 CB SRP/NL+FA R1.0 |
| 535422 | Ø100×30 mm | 80 daN | C/R | Yes | 53 100X30 CR SRP/NL+FA R1.0 |
| 535403 | Ø125×37.5 mm | 130 daN | C/B | Yes | 53 125X37,5 CB SRP/NL+FA R1.0 |
| 535423 | Ø125×37.5 mm | 130 daN | C/R | Yes | 53 125X37,5 CR SRP/NL+FA R1.0 |
| 535404 | Ø140×37.5 mm | 150 daN | C/B | Yes | 53 140X37,5 CB SRP/NL+FA R1.0 |
| 535424 | Ø140×37.5 mm | 150 daN | C/R | Yes | This article |
| 535411 | Ø150×40 mm | 170 daN | C/B | Yes | 53 150X40 CB SRP/NL+FA R1.0 |
| 535431 | Ø150×40 mm | 170 daN | C/R | Yes | 53 150X40 CR SRP/NL+FA R1.0 |
| 535410 | Ø160×40 mm | 180 daN | C/B | Yes | 53 160X40 CB SRP/NL+FA R2.0 |
| 535430 | Ø160×40 mm | 180 daN | C/R | Yes | 53 160X40 CR SRP/NL+FA R2.0 |
| 535405 | Ø180×45 mm | 200 daN | C/B | Yes | 53 180X45 CB SRP/NL+FA R2.0 |
| 535425 | Ø180×45 mm | 200 daN | C/R | Yes | 53 180X45 CR SRP/NL+FA R2.0 |
| 535406 | Ø200×50 mm | 230 daN | C/B | Yes | 53 200X50 CB SRP/NL+FA R2.0 |
| 535426 | Ø200×50 mm | 230 daN | C/R | Yes | 53 200X50 CR SRP/NL+FA R2.0 |
| 535407 | Ø225×50 mm | 250 daN | C/B | Yes | 53 225X50 CB SRP/NL+FA R4.0 |
| 535427 | Ø225×50 mm | 250 daN | C/R | Yes | 53 225X50 CR SRP/NL+FA R4.0 |
Similar alternatives
- 235204Series 23

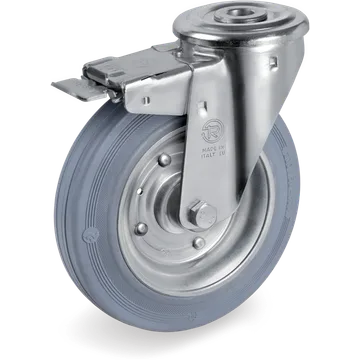

235604Series 23Rubber swivel castor Ø140×37.5 mm with brake
Ruedas en goma antihuella, núcleo formado por 2 llantas de chapa, soporte giratorio taladro pasador NL freno delantero
Load capacity: 150 daN

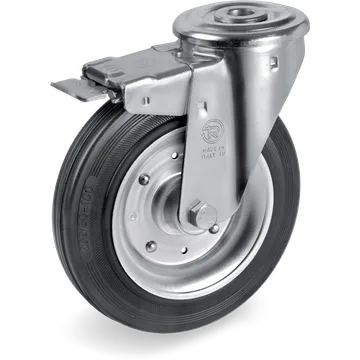

538204Series 53Rubber swivel castor Ø140×37.5 mm with brake
