627406ESDSeries 62ESDTR-Roll ESD polyurethane swivel castor Ø200×50 mm with brake
Ruedas de poliuretano ESD "TR Roll", resistencia eléctrica < 10^9 Ohm, soporte giratorio pletina M con freno
Load capacity: 500 daN

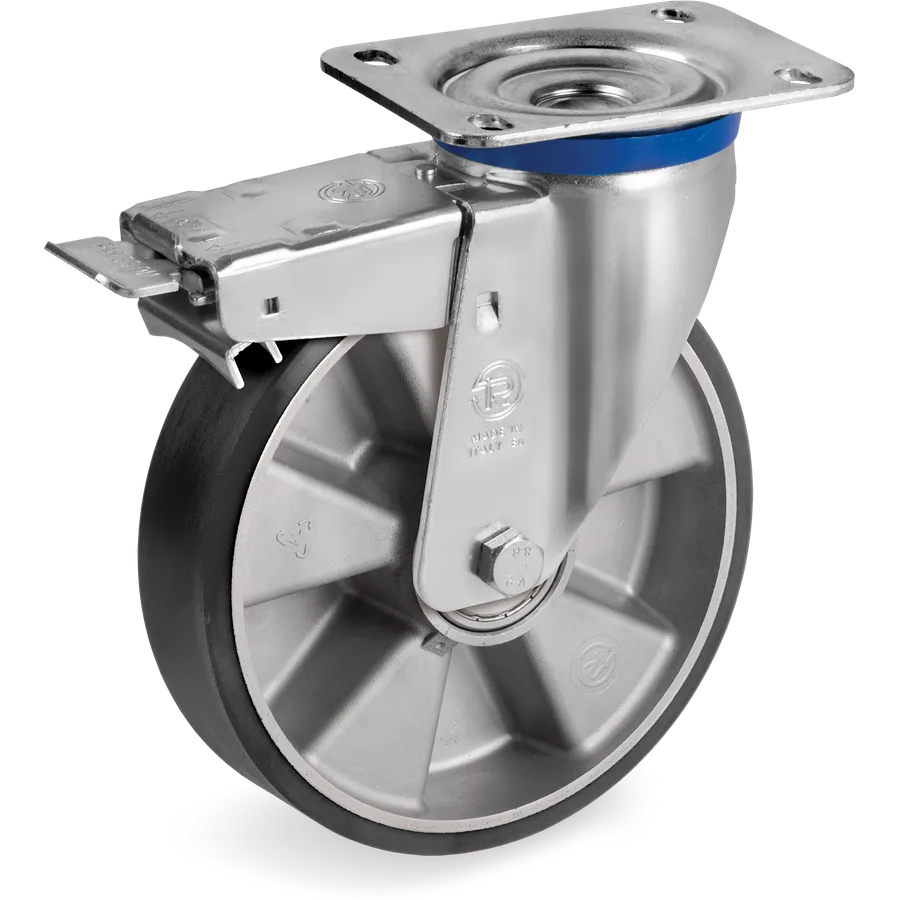

659706ESDRepresentative image of the familyTR ESD polyurethane swivel castor Ø200×50 mm with brake
Ruedas de poliuretano ESD "TR", resistencia eléctrica < 10^9 Ohm, , núcleo en aluminio, soporte giratorio pletina M freno delantero
Tellure description: 65ESD 200X50 CC SRP/M+FA R2.0
- Diameter (D)
- Ø 200mm
- Width (F)
- 50mm
- Load at 4 km/h
- 500daN
- Tread
- TR ESD polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 659706ESD
- Series
- Tellure Rôta 65ESD
- Tread
- TR ESD polyurethane
- Diameter (D)
- 200 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 500 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Front brake
