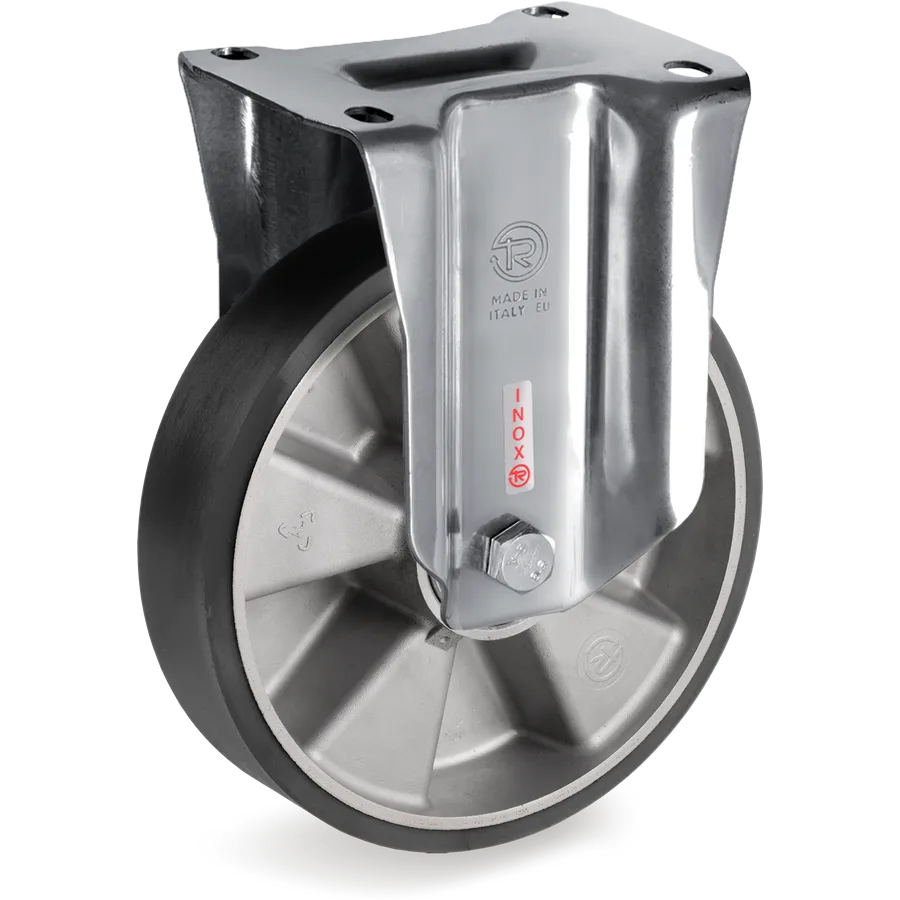

658333ESDRepresentative image of the familyTR ESD polyurethane fixed castor Ø125×35 mm
Ruedas de poliuretano ESD "TR", resistencia eléctrica < 10^9 Ohm, , núcleo en aluminio, soporte fijo NLX
Tellure description: 65ESD 125X35 CCX SF/NLX R1.0
- Diameter (D)
- Ø 125mm
- Width (F)
- 35mm
- Load at 4 km/h
- 220daN
- Tread
- TR ESD polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 658333ESD
- Series
- Tellure Rôta 65ESD
- Tread
- TR ESD polyurethane
- Diameter (D)
- 125 mm
- Width (F)
- 35 mm
- Load at 4 km/h
- 220 daN
- Bearing
- Ball bearings 2RS stainless
Bracket
- Bracket type
- Fixed
- Fitting
- Top plate
- Bracket material
- Stainless steel
- Brake
- No
Other sizes in this family
Ruedas de poliuretano ESD "TR", resistencia eléctrica < 10^9 Ohm, , núcleo en aluminio, soporte fijo NLX
6 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 658331ESD | Ø80×25 mm | 170 daN | C/CX 2RS | No | 65ESD 80X25 CCX SF/NLX R1.0 |
| 658332ESD | Ø100×30 mm | 200 daN | C/CX 2RS | No | 65ESD 100X30 CCX SF/NLX R1.0 |
| 658333ESD | Ø125×35 mm | 220 daN | C/CX 2RS | No | This article |
| 658334ESD | Ø150×40 mm | 480 daN | C/CX 2RS | No | 65ESD 150X40 CCX SF/NLX R2.0 |
| 658344ESD | Ø160×50 mm | 500 daN | C/CX 2RS | No | 65ESD 160X50 CCX SF/NLX R2.0 |
| 658336ESD | Ø200×50 mm | 500 daN | C/CX 2RS | No | 65ESD 200X50 CCX SF/NLX R2.0 |
