627304ESDSeries 62ESDTR-Roll ESD polyurethane swivel castor Ø160×50 mm with brake
Ruedas de poliuretano ESD "TR Roll", resistencia eléctrica < 10^9 Ohm, soporte giratorio pletina NL con freno
Load capacity: 300 daN

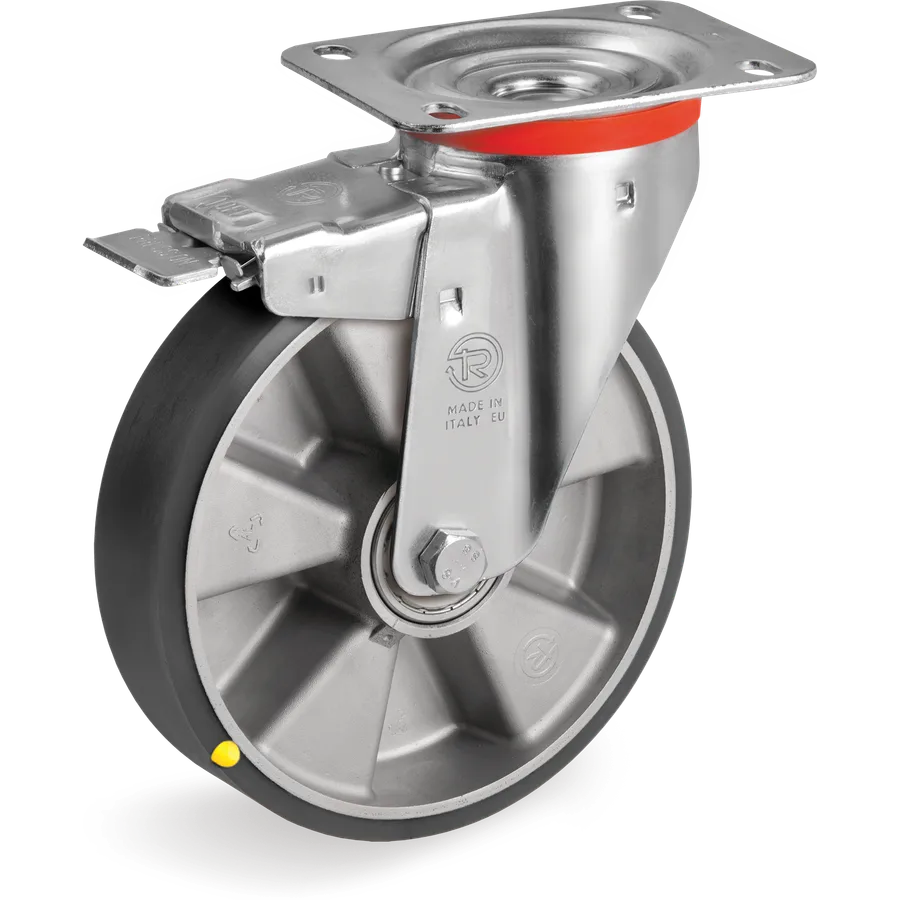

656514ESDRepresentative image of the familyTR ESD polyurethane swivel castor Ø160×50 mm with brake
Ruedas de poliuretano ESD "TR", resistencia eléctrica < 10^9 Ohm, , núcleo en aluminio, soporte giratorio pletina NL freno delantero
Tellure description: 65ESD 160X50 CC SRP/NL+FA R2.0
- Diameter (D)
- Ø 160mm
- Width (F)
- 50mm
- Load at 4 km/h
- 300daN
- Tread
- TR ESD polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 656514ESD
- Series
- Tellure Rôta 65ESD
- Tread
- TR ESD polyurethane
- Diameter (D)
- 160 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 300 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Front brake
Other sizes in this family
Ruedas de poliuretano ESD "TR", resistencia eléctrica < 10^9 Ohm, , núcleo en aluminio, soporte giratorio pletina NL freno delantero
6 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 656501ESD | Ø80×25 mm | 170 daN | C/C 2Z | Yes | 65ESD 80X25 CC SRP/NL+FA R1.0 |
| 656502ESD | Ø100×30 mm | 200 daN | C/C 2Z | Yes | 65ESD 100X30 CC SRP/NL+FA R1.0 |
| 656503ESD | Ø125×35 mm | 220 daN | C/C 2Z | Yes | 65ESD 125X35 CC SRP/NL+FA R1.0 |
| 656504ESD | Ø150×40 mm | 300 daN | C/C 2Z | Yes | 65ESD 150X40 CC SRP/NL+FA R2.0 |
| 656514ESD | Ø160×50 mm | 300 daN | C/C 2Z | Yes | This article |
| 656506ESD | Ø200×50 mm | 300 daN | C/C 2Z | Yes | 65ESD 200X50 CC SRP/NL+FA R2.0 |
